Transmission Temperature Sensor/Switch: Service and Repair

REMOVAL PROCEDURE





1. Raise and suitably support the vehicle. Refer to Vehicle Lift Points.

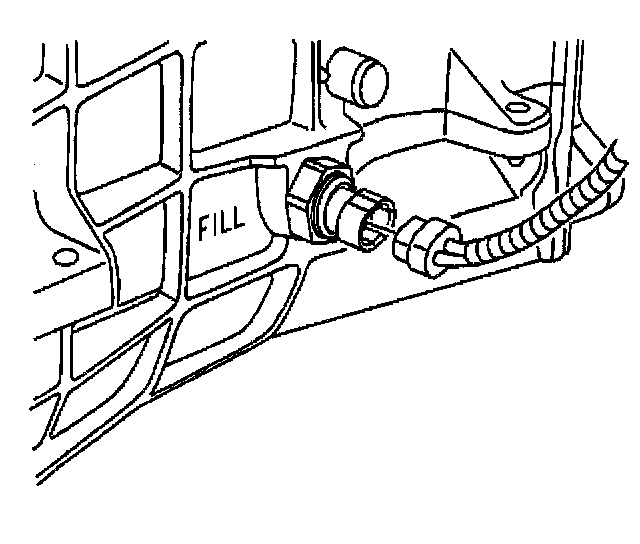

2. Disconnect the transmission fluid temperature sensor electrical connector.

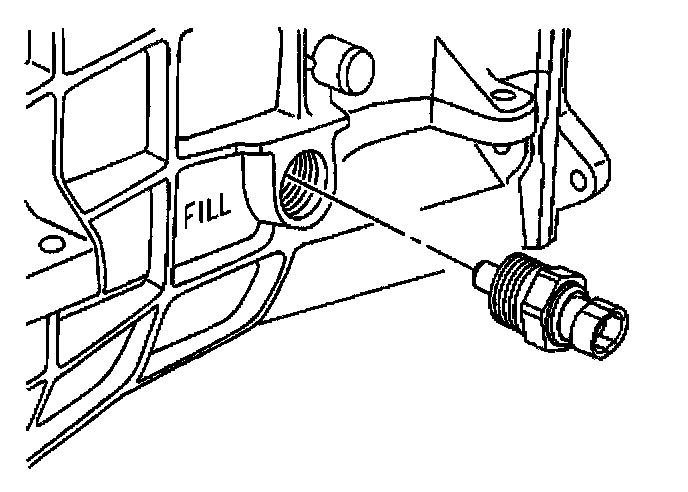

3. Remove the transmission fluid temperature sensor.

INSTALLATION PROCEDURE





1. Install the transmission fluid temperature sensor.
^ Tighten the transmission fluid temperature sensor to 27 Nm (20 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

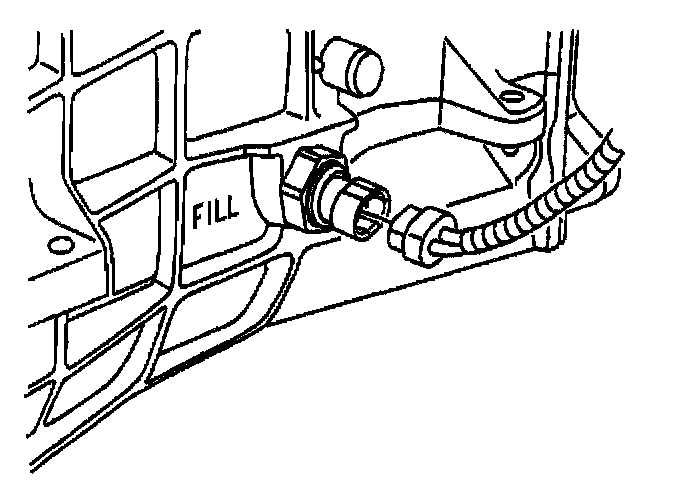

2. Connect the transmission fluid temperature sensor electrical connector.
3. Lower the vehicle.
