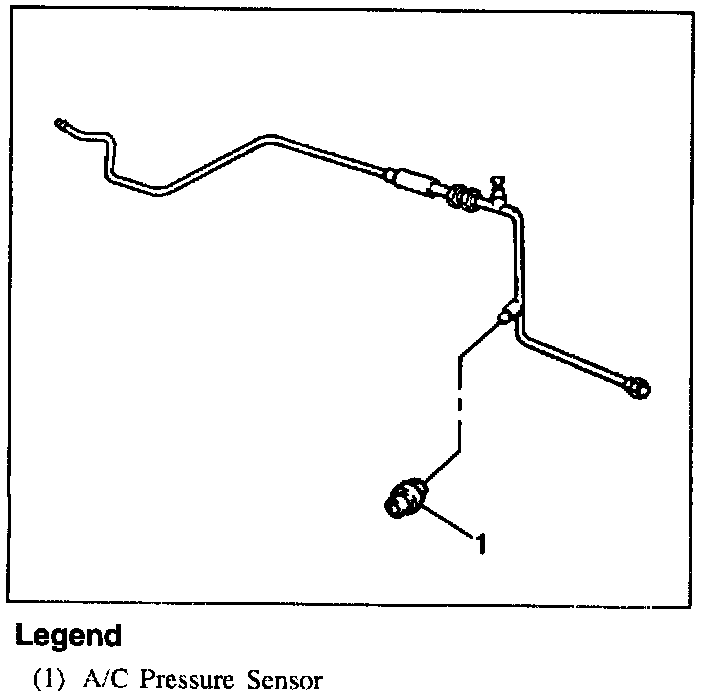

A/C Pressure Sensor

Remove or Disconnect

1. Air cleaner and duct assembly.
2. Battery ground (negative) cable.
3. Electrical connector at switch.
4. Switch from evaporator line.

Install or Connect

1. New O-ring seal lubricated with mineral base 525 viscosity refrigerant oil.
2. Switch to evaporator line.

Tighten
^ Switch to 5 N.m (44 lb. in.).

3. Electrical connector at switch.
4. Battery ground (negative) cable.
5. Air cleaner and duct assembly.
