Home >> Chevrolet >> 1998 >> Metro L3-061 1.0L VIN 6 TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Daytime Running Lamp Control Unit

Daytime Running Lamp Control Unit

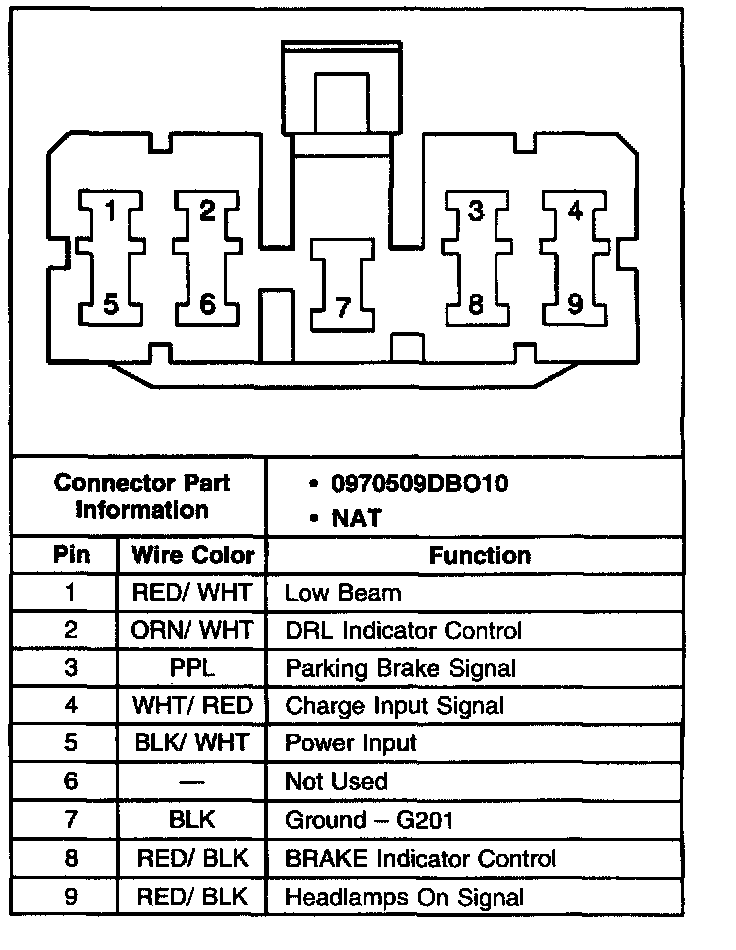

Daytime Running Lamps (DRL) Control Module:

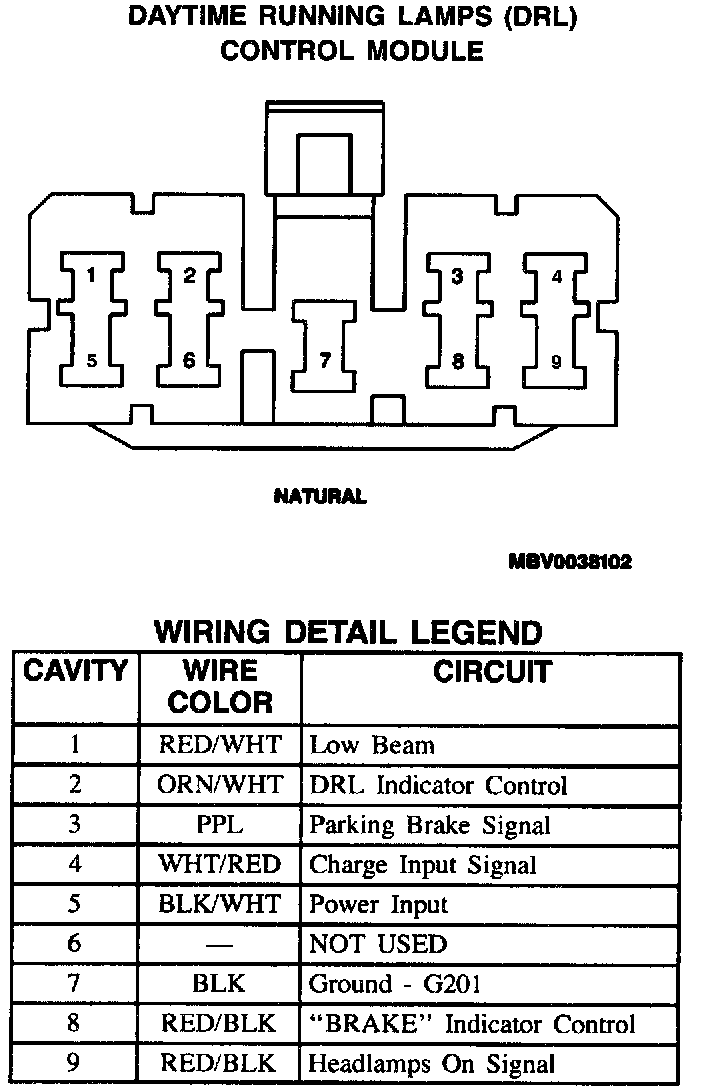

Daytime Running Lamps (DRL) Control Module:
