Console Replacement
Console ReplacementRemoval Procedure
1. Open the console compartment.
2. Refer to Trim Plate Replacement - Console Service and Repair in order to remove one of the following components:
^ The console trim plate - automatic transmission
^ The boot - manual transmission

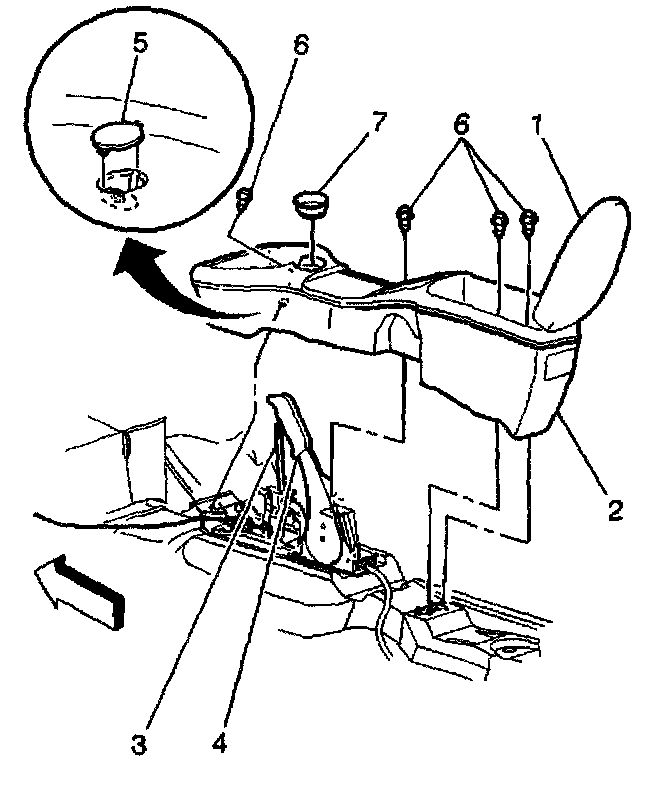

3. Remove the screw cover (7).
4. Remove the screws (6).
5. Remove the console (2).
Installation Procedure
1. Install the console (2).
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install the screws (6).
Tighten
Tighten the screws to 2 N.m (18 lb in).
3. Install the screw cover (7).
4. Refer to Trim Plate Replacement - Console Service and Repair in order to install one of the following components:
^ The console trim plate - automatic transmission
^ The boot - manual transmission
5. Close the console compartment.
