Installation Procedure

Installation Procedure

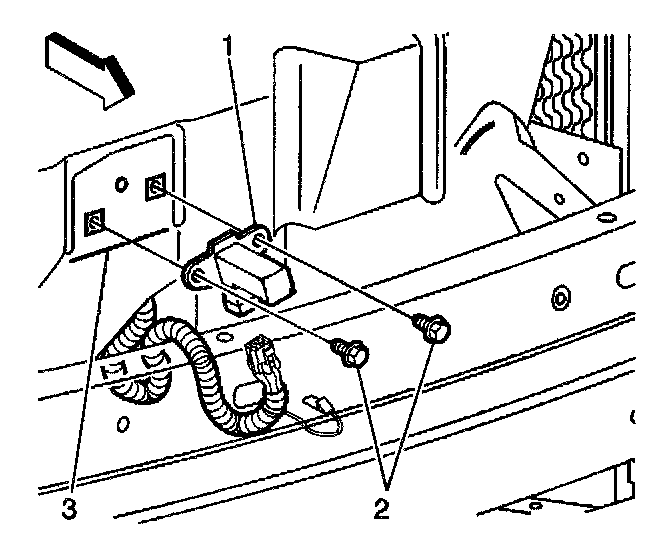

1. Install the Inflatable Restraint Front End Discriminating Sensor (1) to the hood latch support bracket (3).





Notice: Refer to Fastener Notice in Cautions and Notices.





2. Install the Inflatable Restraint Front End Discriminating Sensor mounting fasteners (2).

Tighten
Tighten fasteners to 10 N.m (89 lb in).

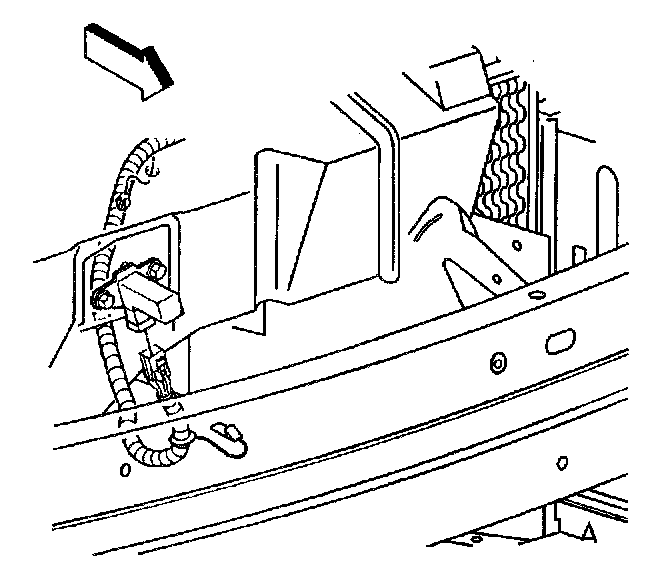

3. Connect the Inflatable Restraint Front End Discriminating Sensor harness connector to the sensor.

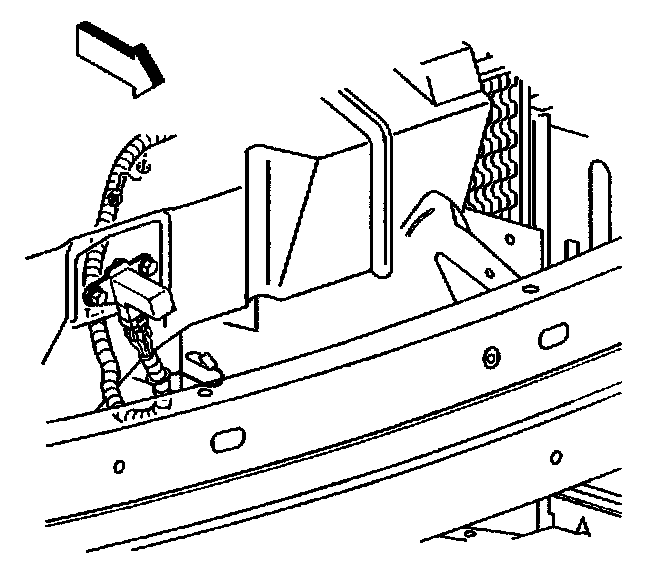

4. Install the Connector Position Assurance (CPA) to the Inflatable Restraint Front End Discriminating Sensor harness connector.
5. Enable the SIR system.
