Home >> Chevrolet >> 1999 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hazard Warning Switch

Hazard Warning Switch

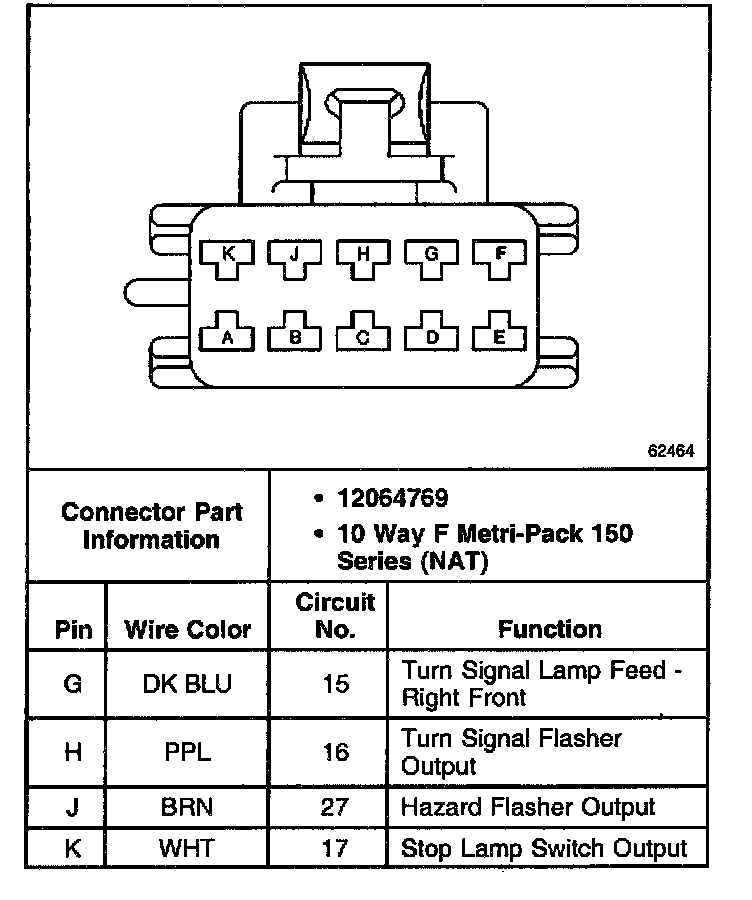

Hazard Warning Switch (Part 1 Of 2):

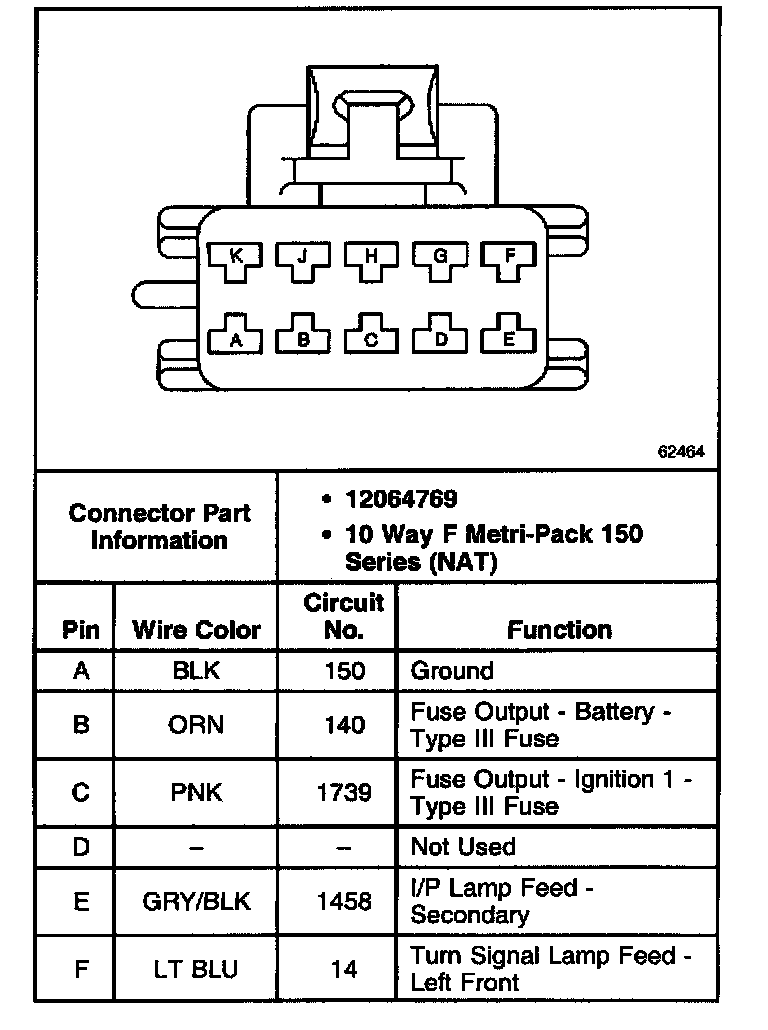

Hazard Warning Switch (Part 2 Of 2):
