LH - C1 (Telescopic and Memory)

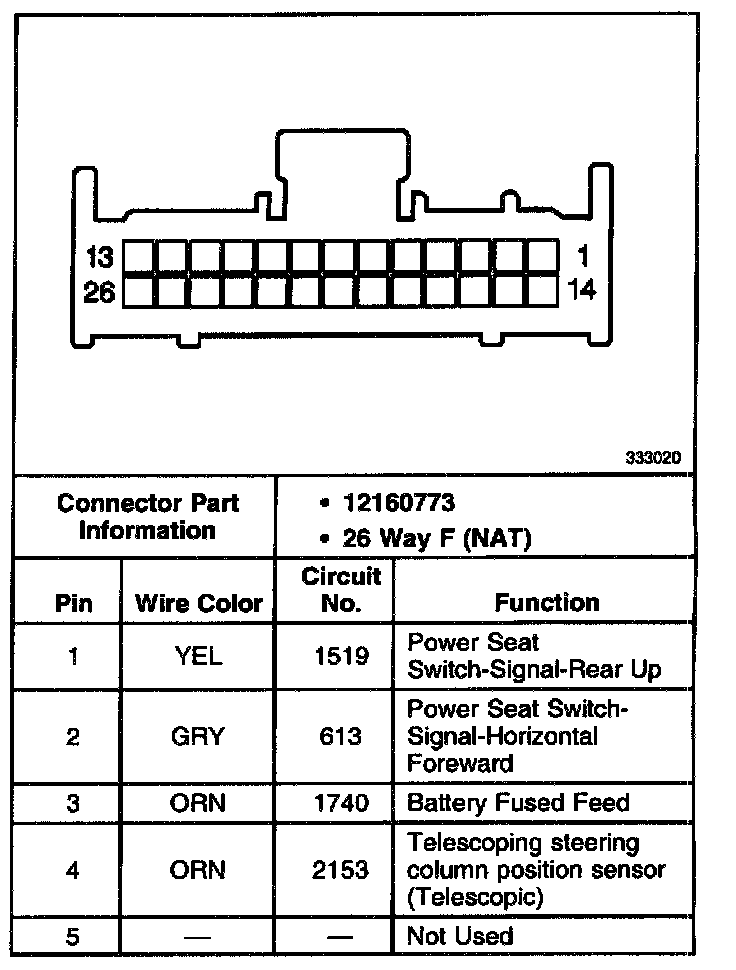

LH Seat Control Module (SCM) - C1 (Telescopic And Memory) (Part 1 Of 2):

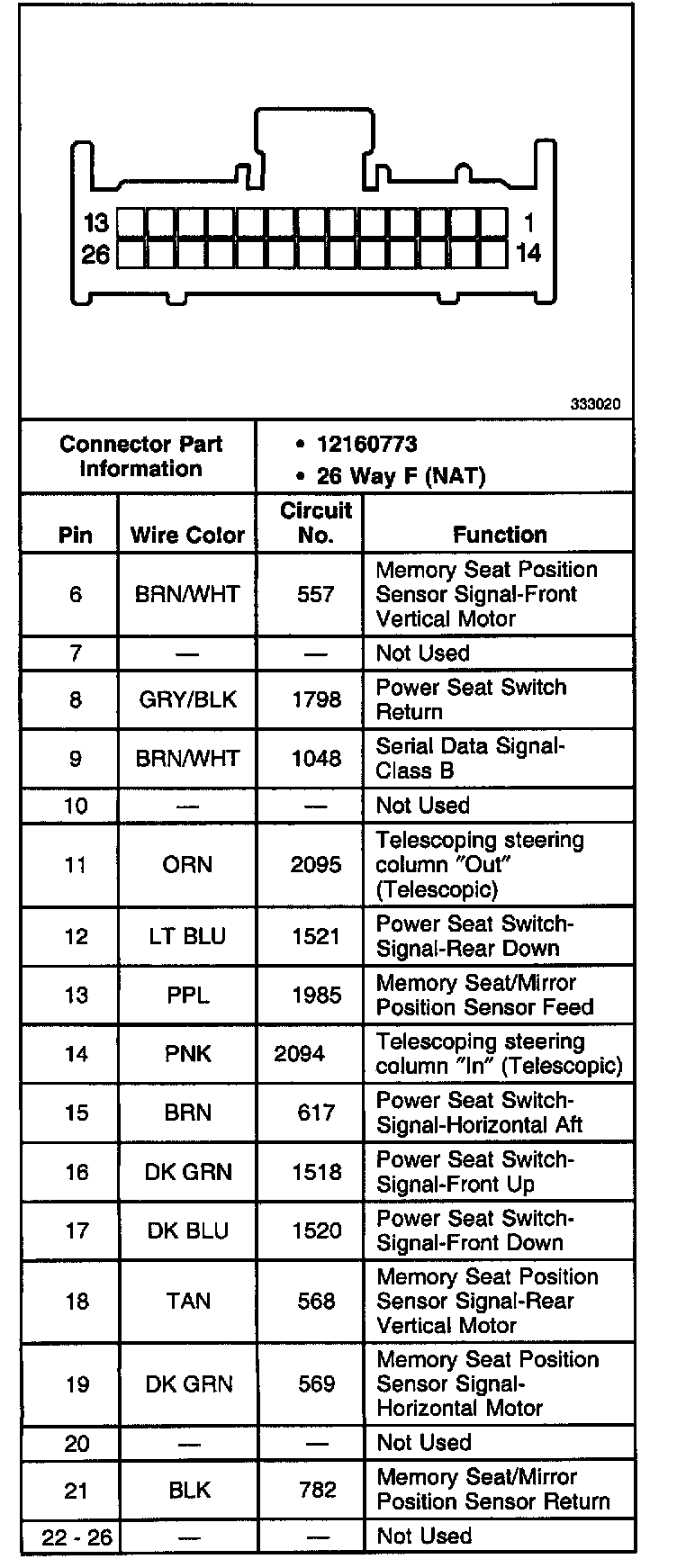

LH Seat Control Module (SCM) - C1 (Telescopic And Memory) (Part 2 Of 2):
