Refrigerant Pressure Sensor / Switch: Locations

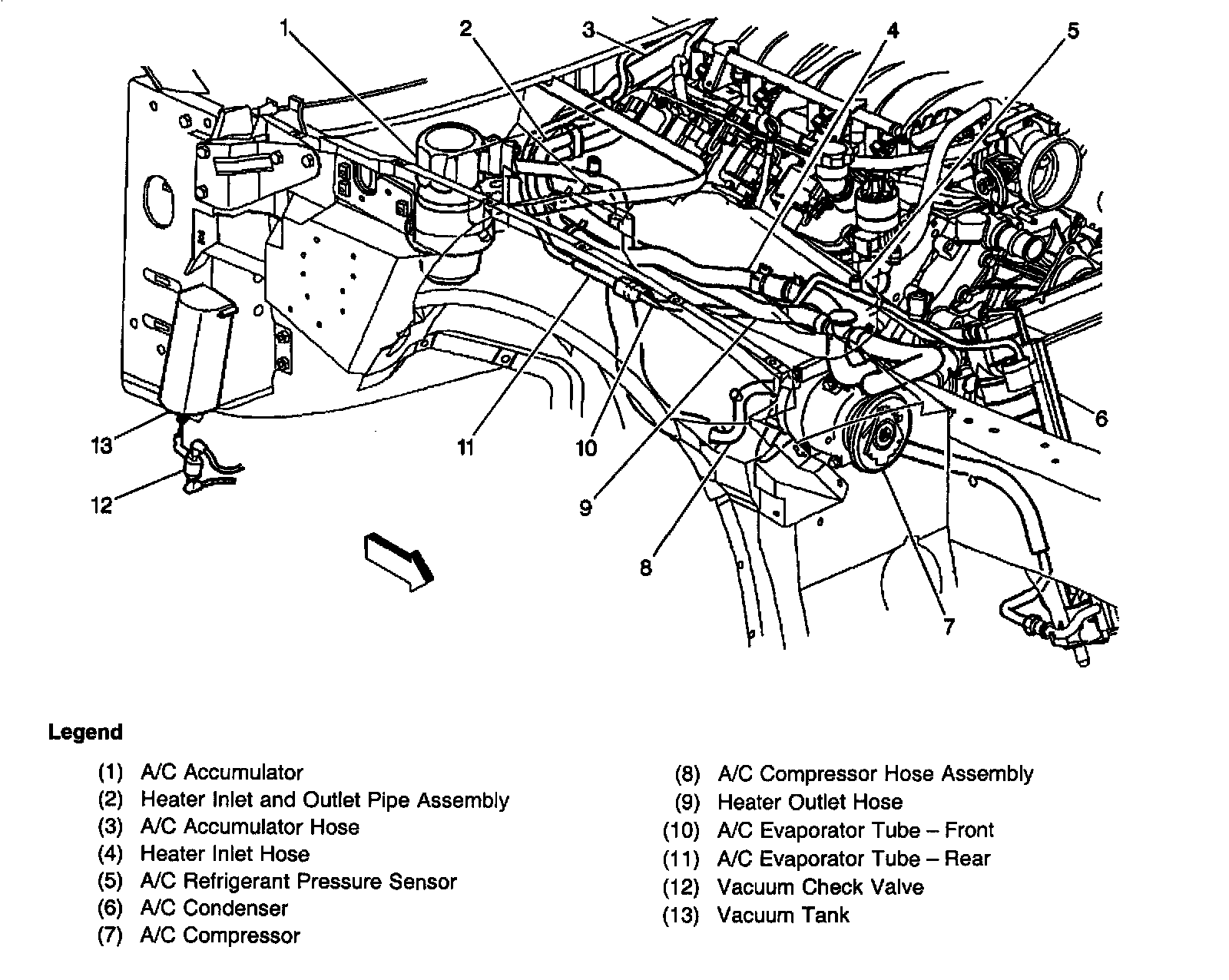

HVAC System Underhood Components:




Engine Compartment Behind The RH Headlamp Assembly:





Attached to the A/C high side line
