Air Temperature Sensor ( Ambient / Intake )
>>
Diagrams
>>
Connector Views
Connector Views

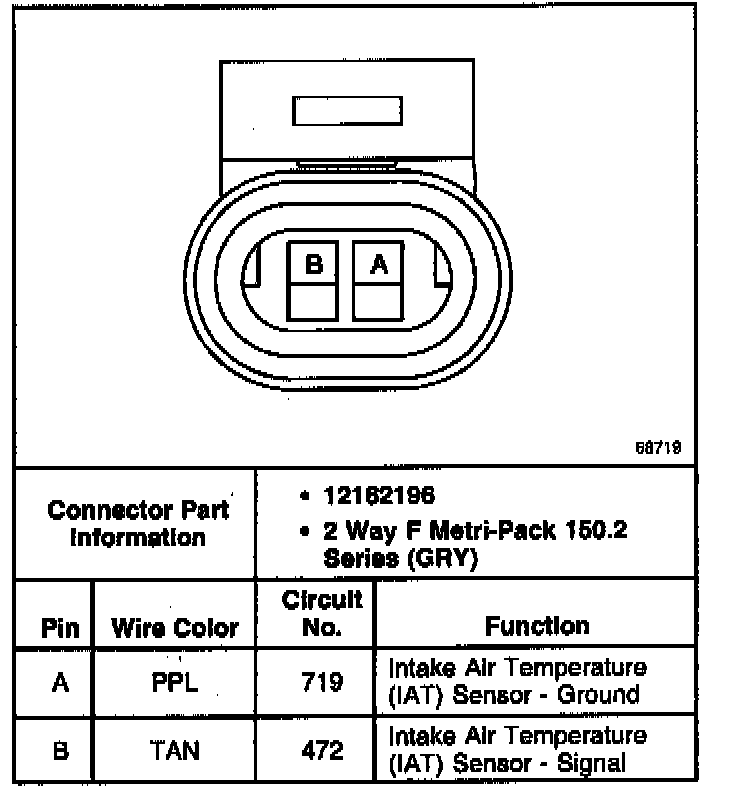

Intake Temperature (IAT) Sensor:
