Electronic Column Lock Module

REMOVAL PROCEDURE

IMPORTANT: If the steering column connectors are disconnected with the ignition in the ON position, the BCM will enter a fail enable mode and prevent steering column lock operation. The PCM will also inhibit vehicle motion by disabling fuel. To clear the BCM fail enable mode, disconnect the BCM fuse #25 for 15 seconds.





1. Remove the upper and lower steering column trim covers. Refer to Steering Column Trim Cover Replacement- On Vehicle (Non-Telescoping).

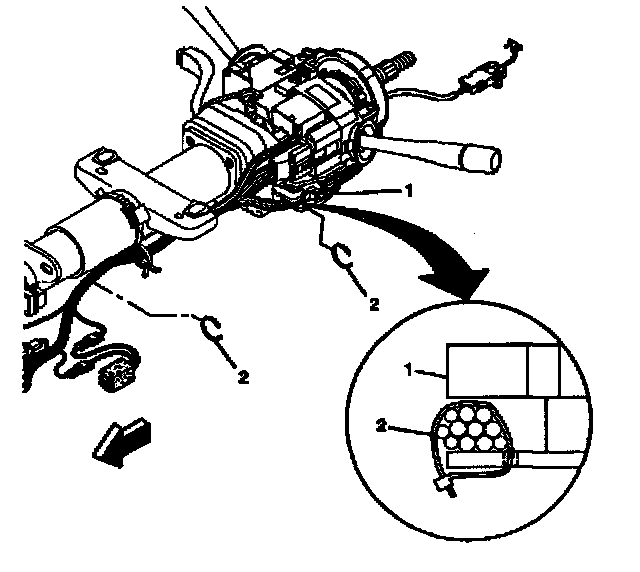

2. Remove the wire harness straps (2) from the steering column tilt head assembly (1) and the column.
3. Remove the steering column tilt head assembly. Refer to Steering Column Tilt Head Assembly Disassemble (Non-Telescoping Column).
4. Remove the electronic column lock module. Refer to Electronic Column Lock Module - Disassemble (Non-Telescoping Column).

INSTALLATION PROCEDURE





1. Install the electronic column lock module. Refer to Electronic Column Lock Module - Assemble (Non-Telescoping Column).

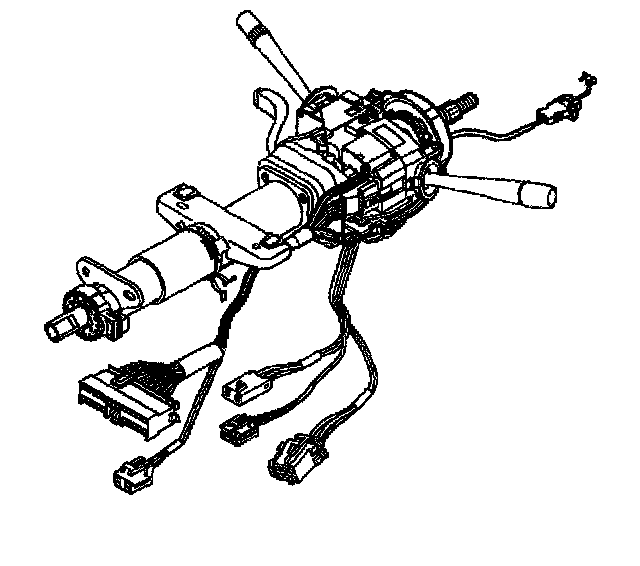

2. Route the wire harness assembly along the steering column jacket assembly.

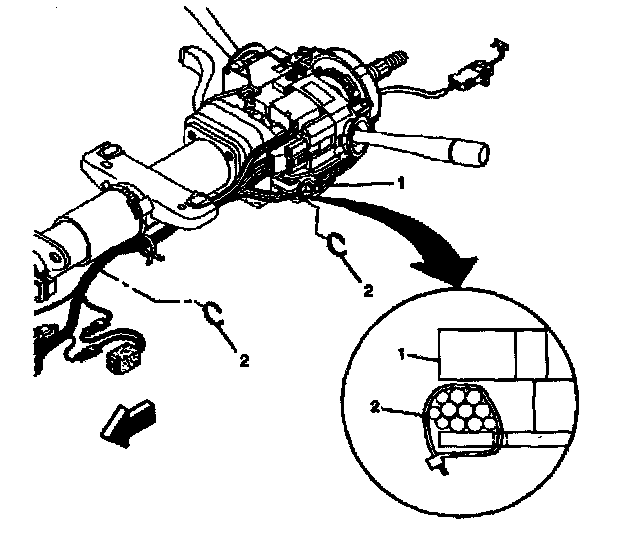

3. Install the wire harness assembly (1) into the wire harness strap (2).





4. Install new wire harness straps (2) to the steering column assembly (1) and the column.
5. Install the steering column tilt head assembly. Refer to Steering Column Tilt Head Assembly Assemble (Non-Telescoping Column).
6. Install the upper and lower steering column trim covers. Refer to Steering Column Trim Cover Replacement - On Vehicle (Non-Telescoping).
