Transmission Temperature Sensor/Switch, A/T




Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

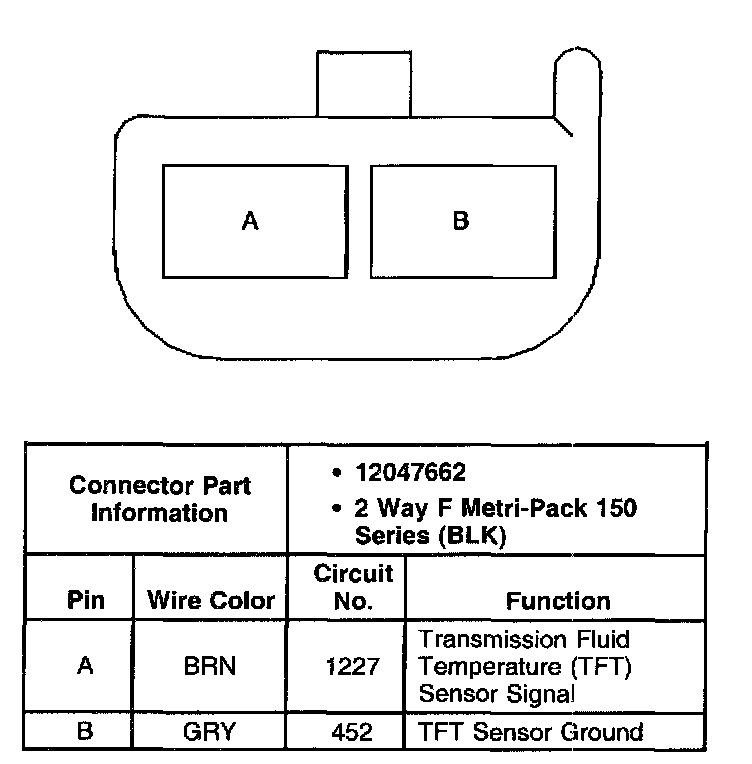

Transmission Fluid Temperature (TFT) Sensor Connector. Wiring Harness Side
