Refrigerant Pressure Sensor / Switch: Locations

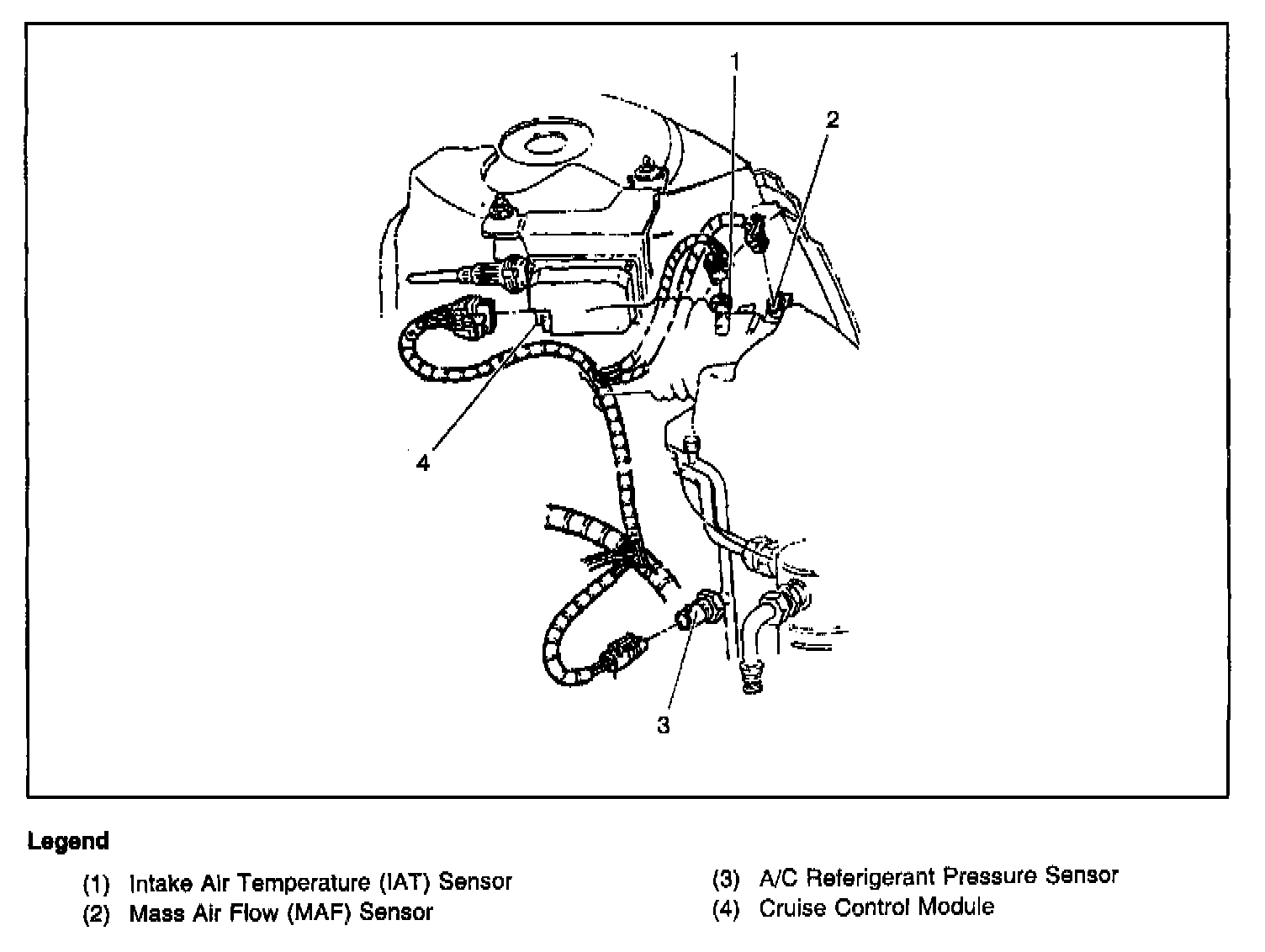

IAT, MAF, A/C Pressure Sensors, Cruise Control Module:





Right side of the engine compartment, below the accumulator
