Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alternator
Alternator

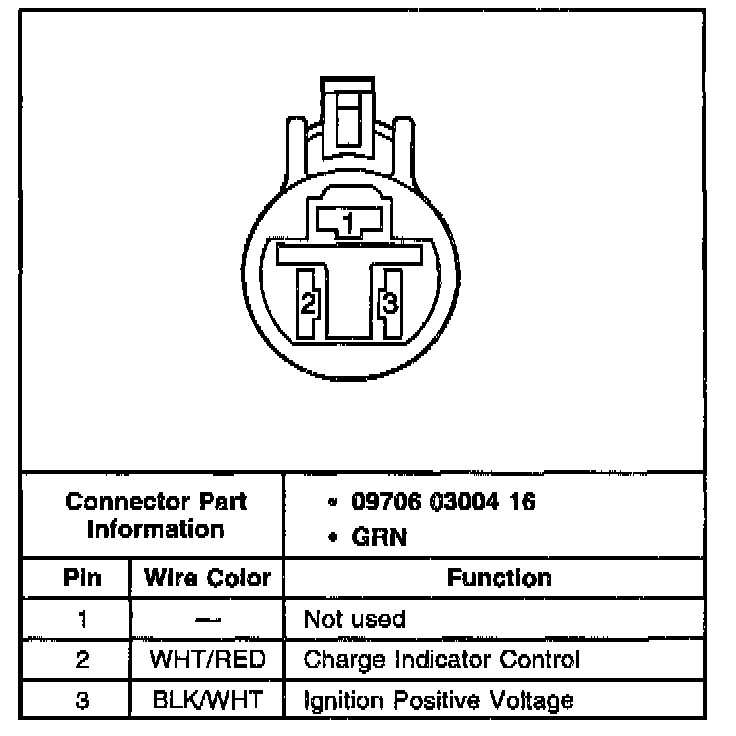

Engine Electrical Connector End Views:
