Metro L4-079 1.3L VIN 2 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block
>>
C8
C8

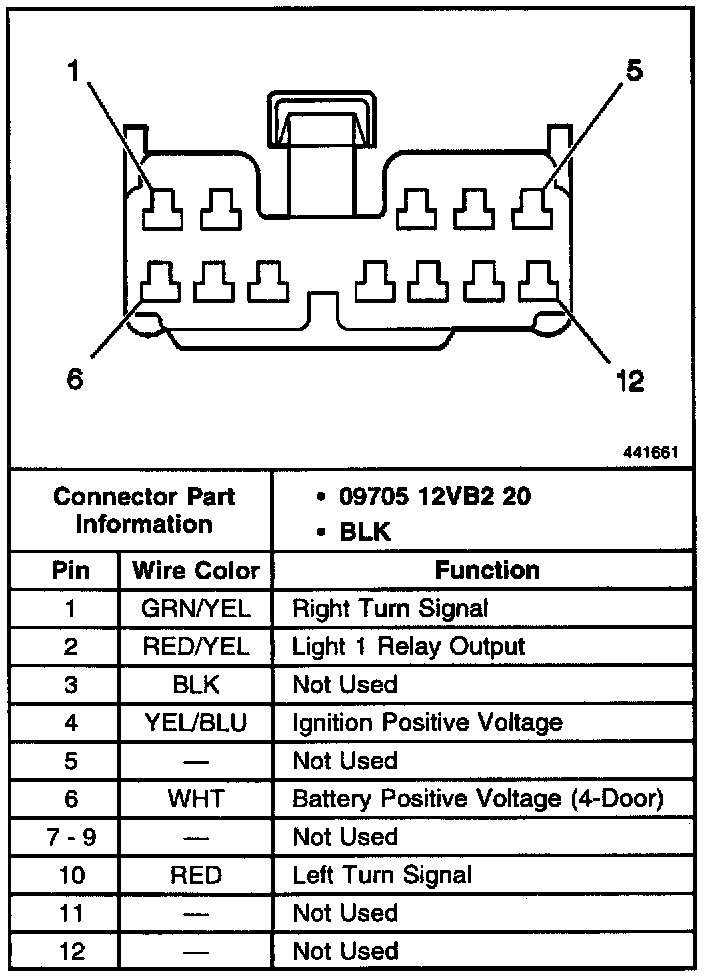

Junction Block C8:
