Side Window

REMOVAL PROCEDURE




1. Remove the Instrument Panel (IP) carrier.
2. Place the IP carrier face down on a clean work surface.

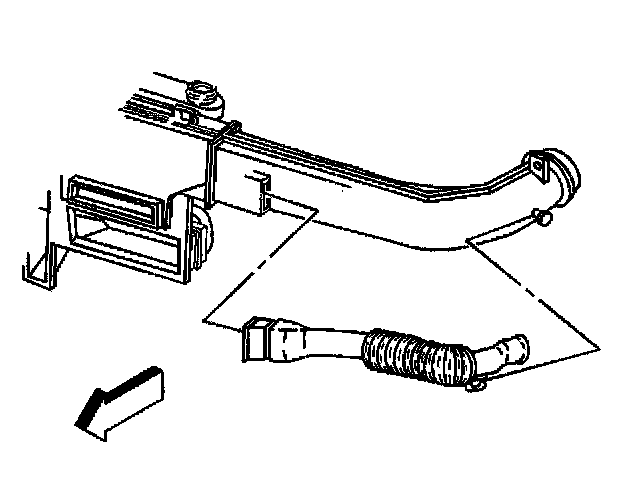

3. Unsnap the side window defogger outlet duct from the air distributor.

INSTALLATION PROCEDURE




1. Snap the side window defogger outlet duct to the air distributor.
2. Install the IP carrier.
