Pressure Plate: Service and Repair

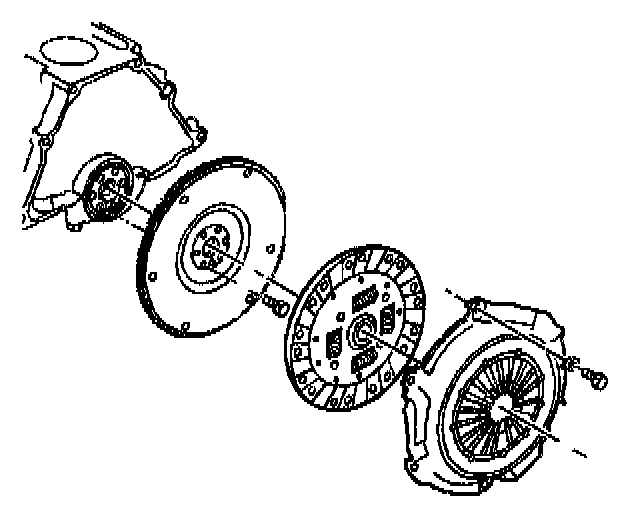

Removal Procedure

1. Remove the transmission.





2. Remove the clutch cover bolts one turn at a time, until spring pressure is relieved.





3. Remove the clutch cover and the clutch disc.

Installation Procedure

^ Tools Required
- J 29074 Clutch Alignment Arbor






1. Align the Heavy Side of the flywheel assembly (stamped with an X), with the clutch cover Light Side (marked with paint).

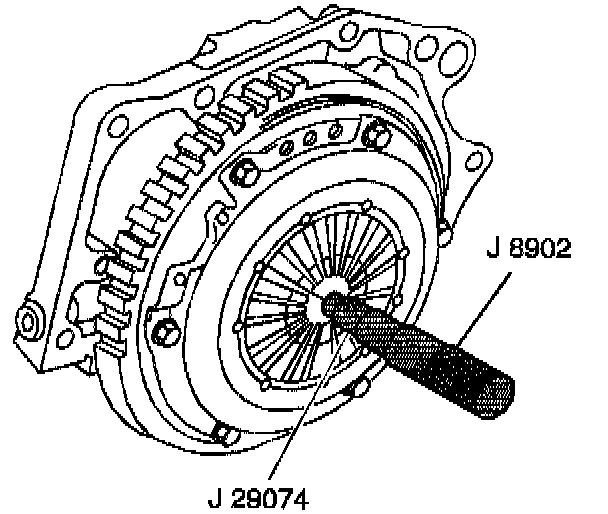

2. Install the J 29074 in order to support the clutch cover to the flywheel assembly.

Notice: Refer to Fastener Notice in Service Precautions.

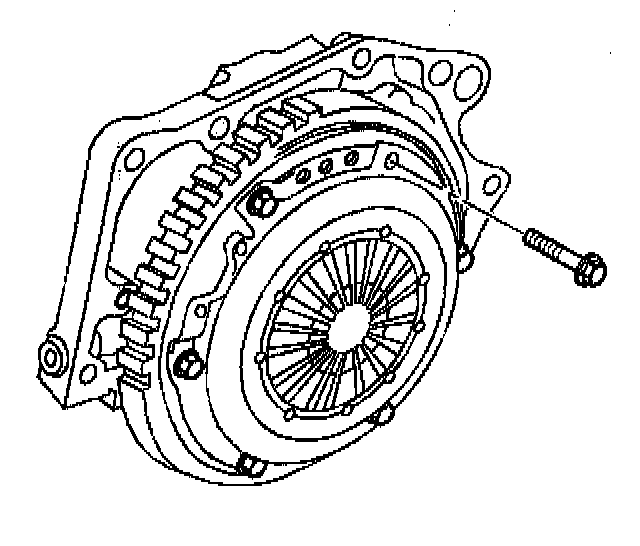

3. Install the clutch cover to flywheel bolts.
3.1. Follow the tightening sequence. Tighten the bolts to 20 Nm (16 ft. lbs.). Rotate 45 degrees.
3.2. Tighten the bolts to specifications. Refer to Fastener Tightening Specifications.
4. Remove the J 29074.
5. Lubricate the inside diameter of the bearing with GM P/N 12345777, or equivalent.
6. Install the transmission.
7. Bleed the hydraulic system. Refer to Hydraulic Clutch Bleeding.
8. Connect the negative battery cable.
