Home
>>
Chevrolet
>>
2000
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>
Bank 2 Sensor 2
Bank 2 Sensor 2

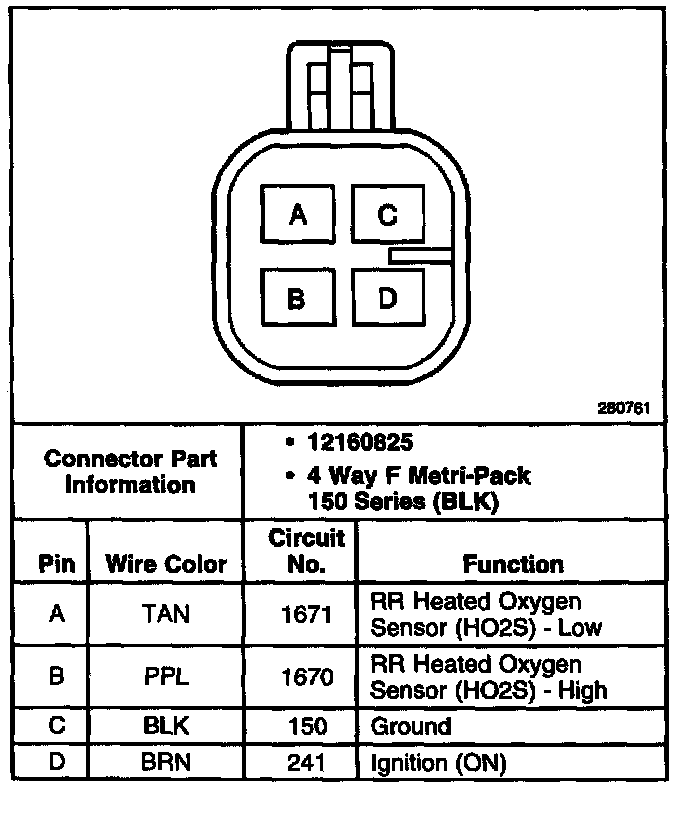

RR Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2:
