Manual Transmission Fluid Temperature Sensor
Manual Transmission Fluid Temperature Sensor

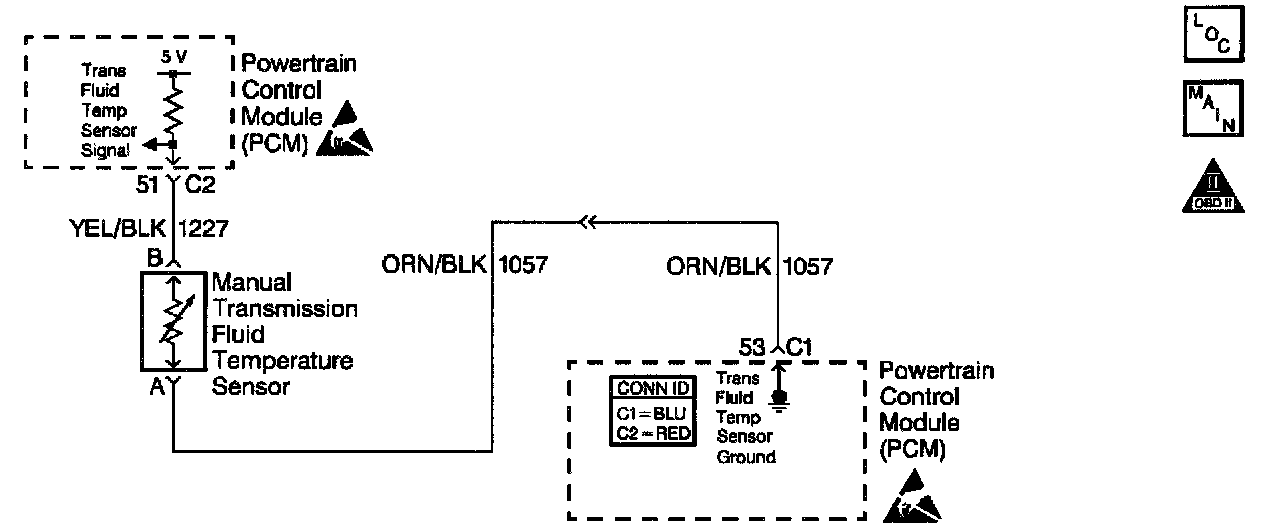

Schematic:
