Engine Valley Cover: Service and Repair

Removal Procedure





1. Remove the intake manifold. Refer to Intake Manifold Replacement
2. Remove the engine coolant air bleed pipe. Refer to Vapor Vent Pipe Replacement.

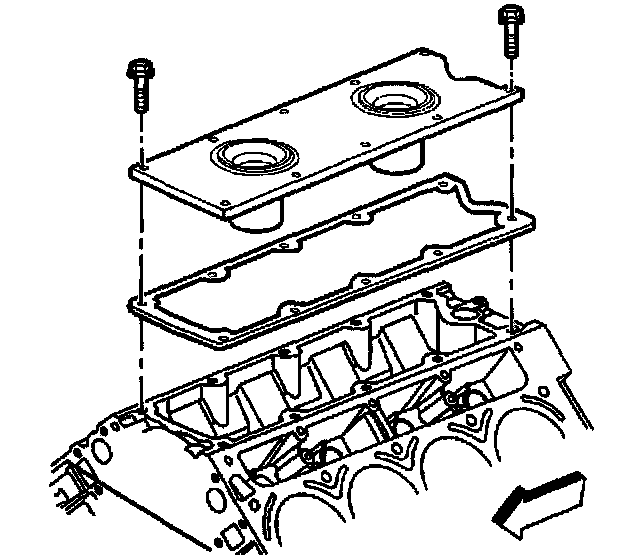

3. Remove the engine valley cover. Refer to Engine Valley Cover Removal.

Installation Procedure

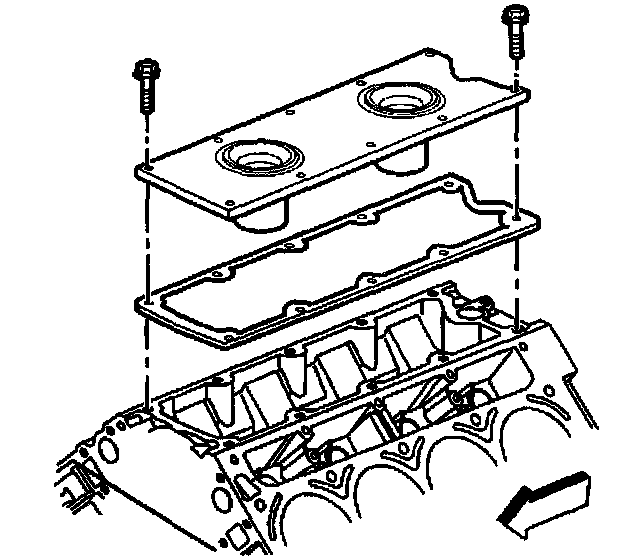

1. Install the engine valley cover. Refer to Engine Valley Cover Installation.
2. Install the engine coolant air bleed pipe. Refer to Vapor Vent Pipe Replacement.
3. Install the intake manifold. Refer to Intake Manifold Replacement.
