Windshield Washer Pump: Service and Repair

REMOVAL PROCEDURE

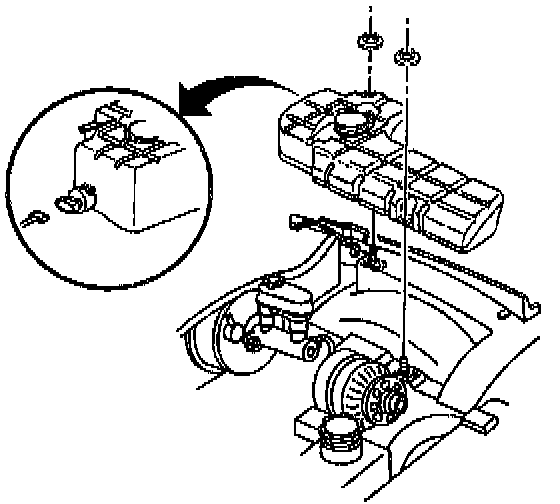

1. Remove the washer solvent reservoir attaching nuts.
2. Remove the hose retention clamp from the frame rail stud.
3. Lift the washer solvent reservoir from the wheelhouse.
4. Disconnect the electrical connector from the fluid level sensor.

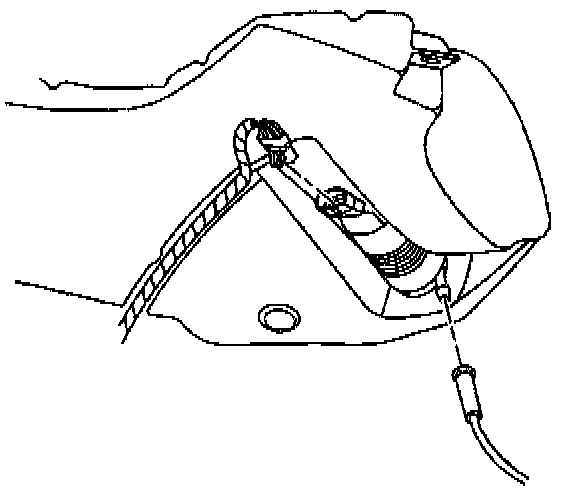

5. Disconnect the washer hose and the electrical connector from the washer pump.
6. Remove the washer solvent reservoir.




7. Drain the washer solvent from the washer solvent reservoir.

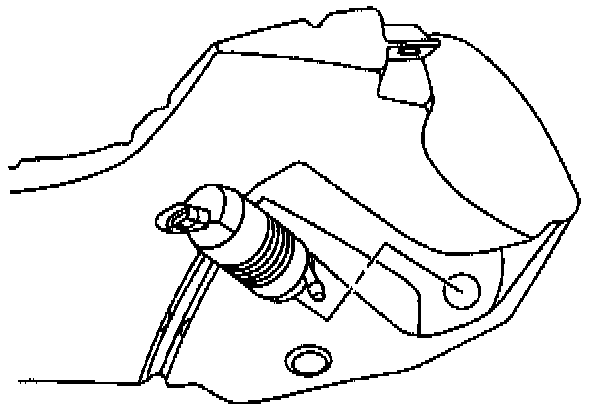

8. Remove the washer pump and seal from the washer solvent reservoir.

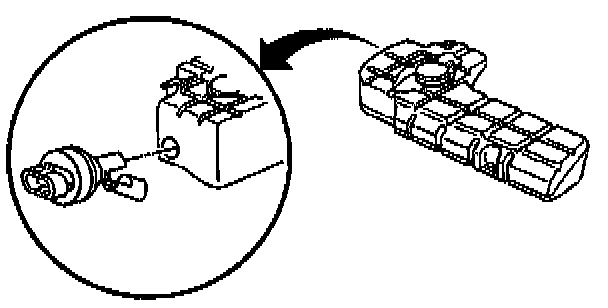

9. Remove the fluid level sensor from the washer solvent reservoir.

INSTALLATION PROCEDURE




1. Install the fluid level sensor into the washer solvent reservoir.




2. Install the washer pump and seal into the washer solvent reservoir.




3. Connect the electrical connector and the washer hose onto the washer pump.




4. Connect the electrical connector onto the fluid level sensor.
5. Place the washer solvent reservoir over the studs on frame rail and the wheelhouse.
6. Install the hose retention camp to the frame rail stud.

NOTE: Refer to Fastener Notice in Service Precautions.

7. Install the washer solvent reservoir attaching nuts.

Tighten
Tighten the washer solvent reservoir nuts to 7.5 N.m (66 lb in).

8. Fill the washer solvent reservoir with washer solvent.
