Wiper Gear Box: Service and Repair

REMOVAL PROCEDURE
TOOLS REQUIRED
J 39232 Wiper Linkage Separator




1. Disconnect the wiper motor fuse. The fuse is located in the instrument panel electrical center.
2. Remove the wiper arm assemblies.
3. Remove the air inlet screen.
4. Remove the wiper motor module assembly.




5. Remove the RH wiper transmission mounting bolts.

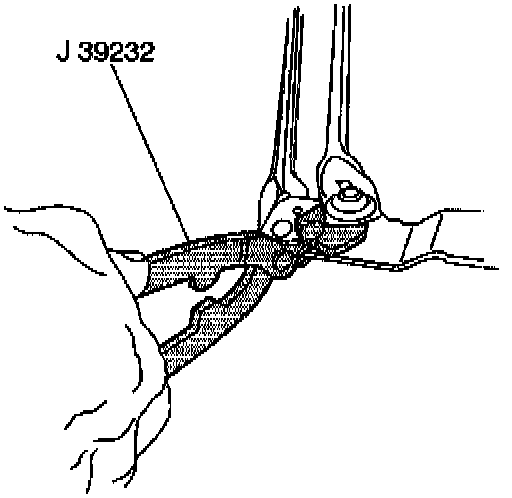

6. Remove the RH wiper transmission from the wiper transmission linkage using J 39232 Wiper Linkage Separator.
7. Disconnect the wiper transmission linkage from the wiper motor module assembly.
8. Remove the LH wiper transmission mounting bolts.
9. Remove the LH wiper transmission from the wiper transmission linkage.

INSTALLATION PROCEDURE
TOOLS REQUIRED
J 39529 Wiper Linkage Installer

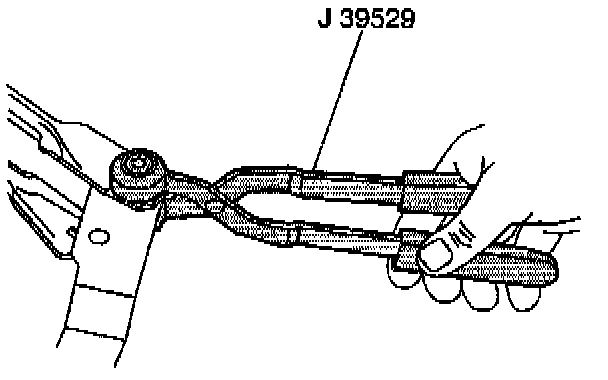

1. Install the LH wiper transmission into the wiper transmission linkage using tool J 39529 Wiper Linkage Installer.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the LH wiper transmission mounting bolts.

Tighten
Tighten the wiper transmission mounting bolts to 10 N.m (89 lb in).

3. Connect the wiper transmission linkage onto the wiper motor.
4. Install the RH wiper transmission into the wiper transmission linkage.

Tighten
Tighten the wiper transmission mounting bolts to 10 N.m (89 lb in).




5. install the wiper motor module assembly.
6. Install the air inlet screen.
7. Install the wiper arm assemblies.
8. Install the wiper motor fuse.
