Bank 2

REMOVAL PROCEDURE




1. Turn OFF the ignition.

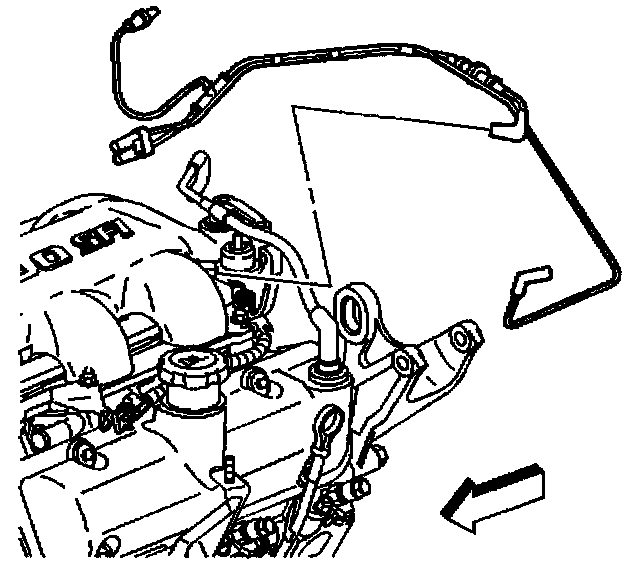

2. Remove the AIR vacuum hose.

CAUTION: Allow the engine to cool before servicing the secondary air injection AIR system in order to reduce the chance of severe burns.

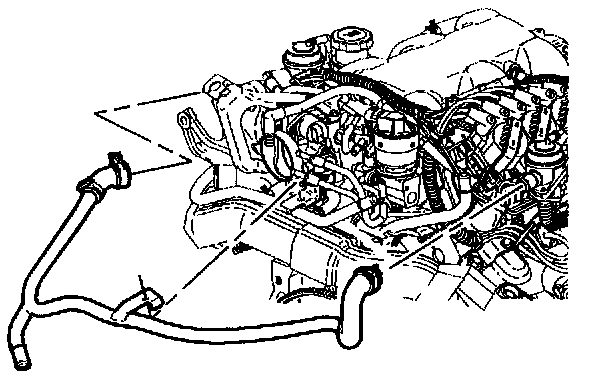

3. Remove the AIR Check Valve pipe, clamps, and bolt.

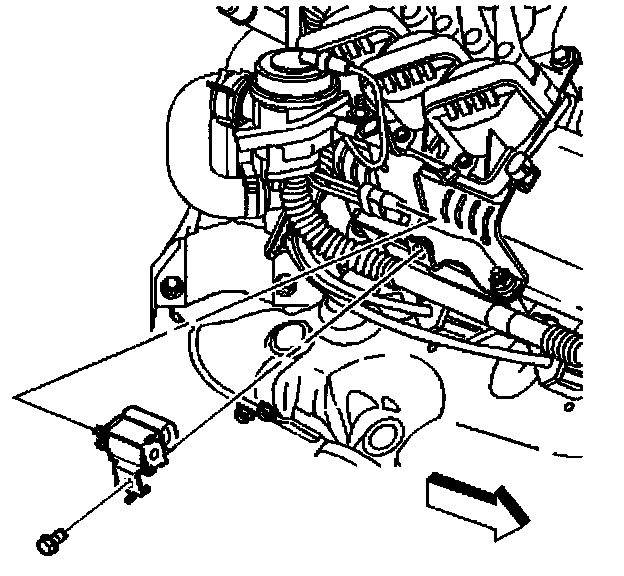

4. Remove the AIR Vacuum Bleed Valve Solenoid and bolt.

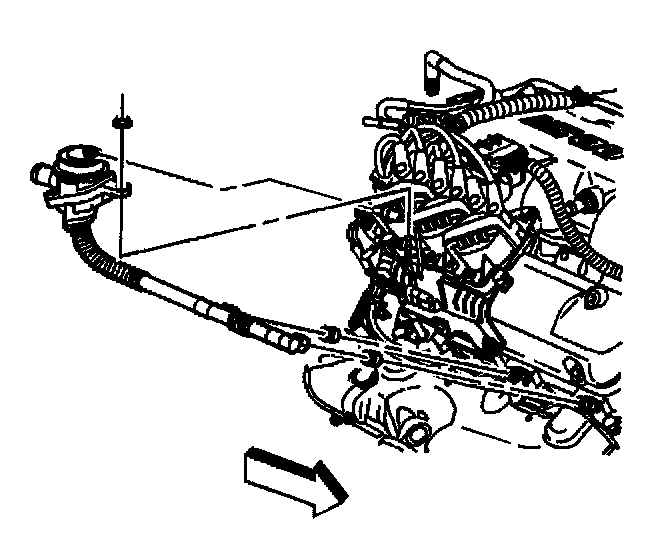

5. Remove the AIR Check Valve nuts.

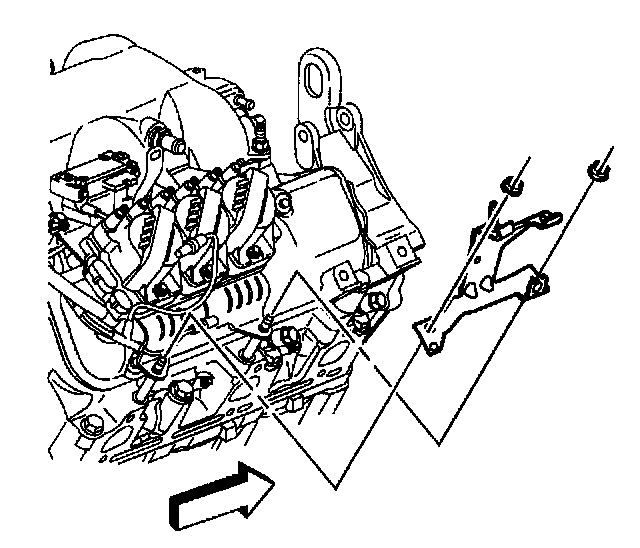

6. Remove the AIR Check Valve rear bracket and nuts.

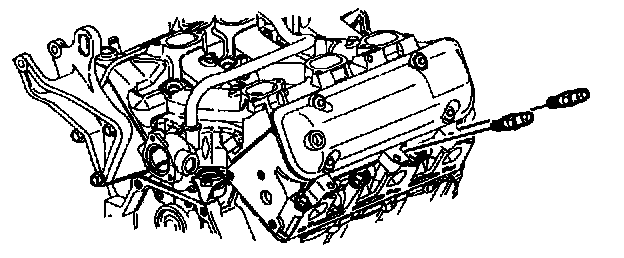

7. Remove the AIR Check Valve pipe adapters.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the AIR Check Valve pipe adapters.

Tighten
Tighten the AIR Check Valve pipe adapters to 30 N.m (22 lb ft).




2. Install the AIR Check Valve rear bracket and nuts.

Tighten
Tighten the AIR Check Valve rear bracket nuts to 25 N.m (18 lb ft).




3. Install the AIR Check Valve.

Tighten
Tighten the AIR Check Valve to 20 N.m (15 lb ft).

4. Install the AIR Check Valve nut.

Tighten
Tighten the AIR Check Valve nut to 10 N.m (89 lb in).




5. Install the AIR Vacuum Bleed Valve Solenoid and bolt.

Tighten
Tighten the AIR Vacuum Bleed Valve Solenoid bolt to 10 N.m (89 lb in).




6. Install the AIR Check Valve pipe, clamps, and bolt.

Tighten
Tighten the AIR Check Valve pipe bolt to 10 N.m (89 lb in).




7. Install the AIR Vacuum hose.
