Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Switch
>>
LF Door Lock Switch
LF Door Lock Switch

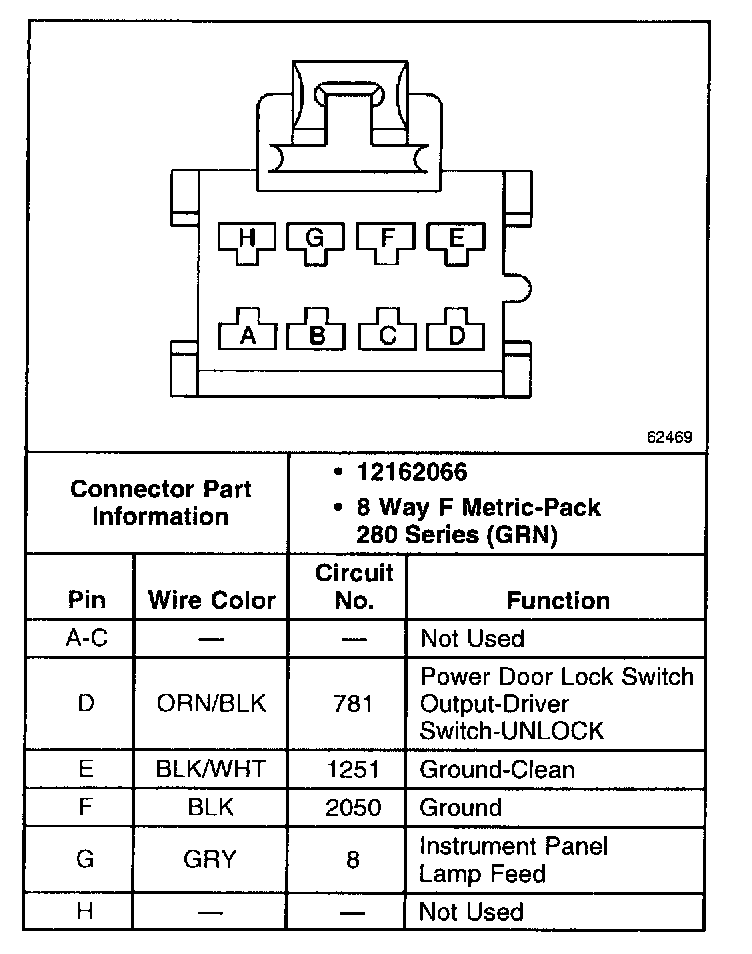

LF Door Lock Switch:
