Home
>>
Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Switch
>>
RF Door Lock Switch
RF Door Lock Switch

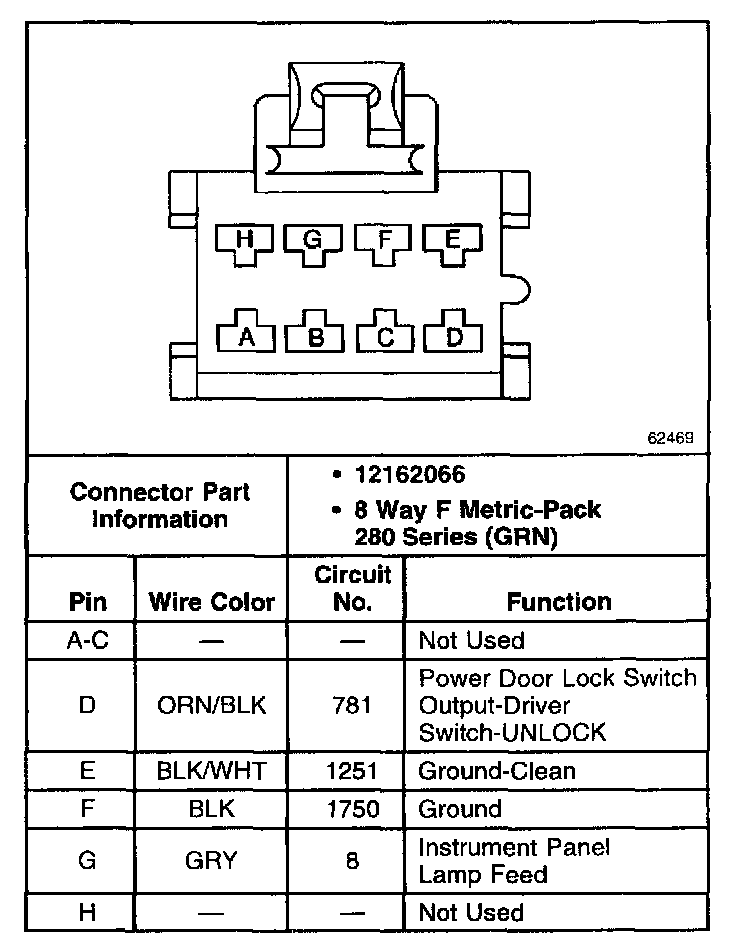

RF Door Lock Switch:
