Home
>>
Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Instrument Panel Fuse Blocks
>>
LH Instrument Panel Fuse Block
>>

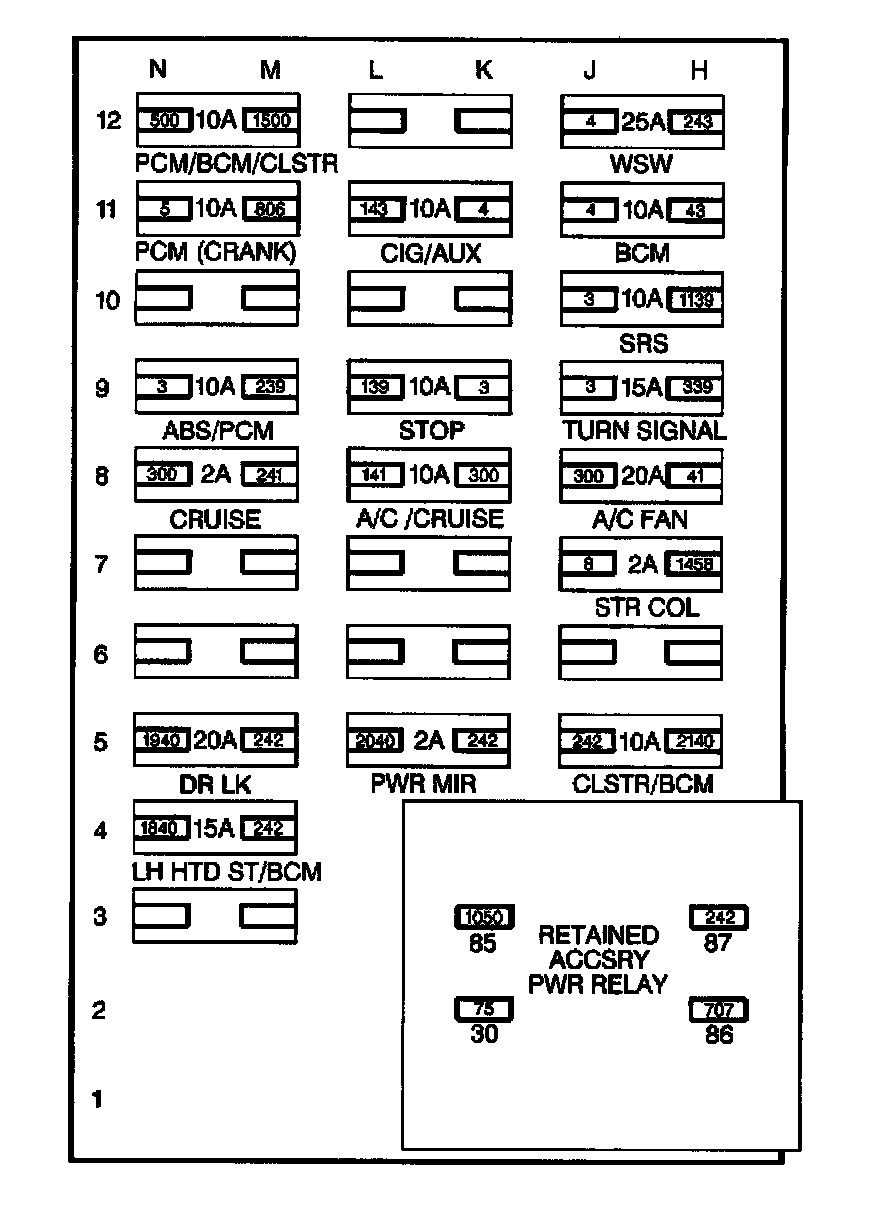

LH Instrument Panel Fuse Block, Top View
LH Instrument Panel Fuse Block, Top View
LH Instrument Panel Fuse Block, Top View:
