Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Diagrams >> Connector Views >> Knock Sensor (KS) - Bank 2

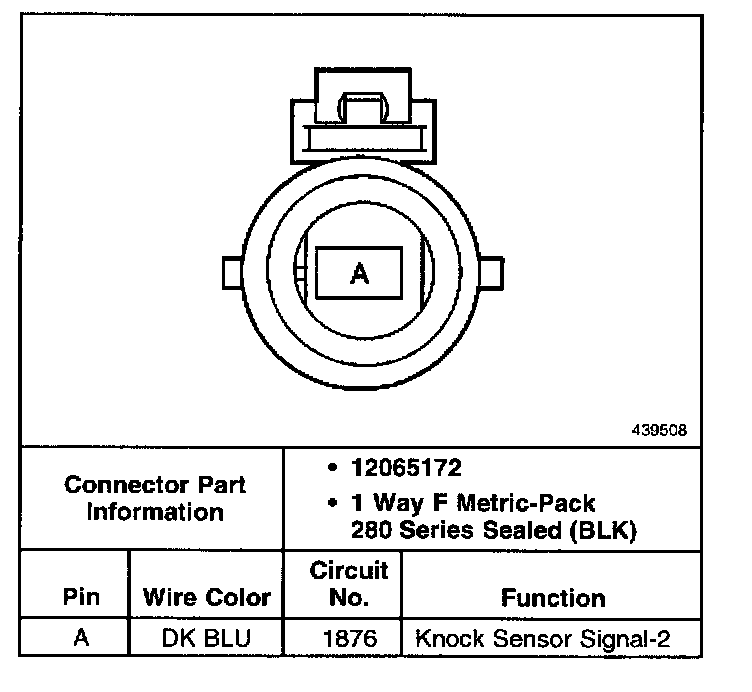

Knock Sensor (KS) - Bank 2

Bank 2 Knock Sensor (KS):
