Fuse Distribution Headlamp Switch And DRL Control Module

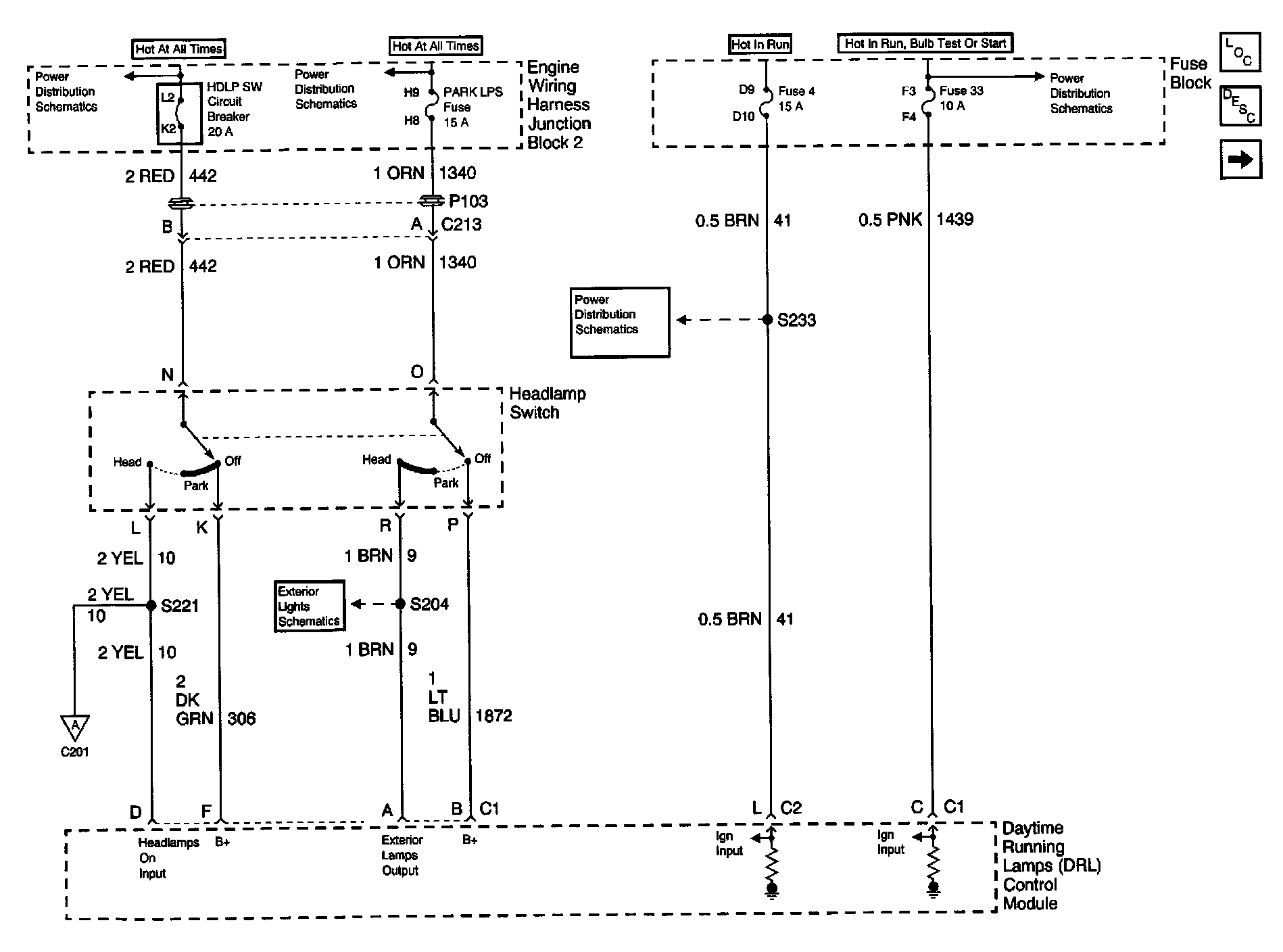

Headlights Schematics: Fuse Distribution Headlamp Switch And DRL Control Module:
