Blower Motor: Service and Repair

BLOWER MOTOR AND FAN REPLACEMENT

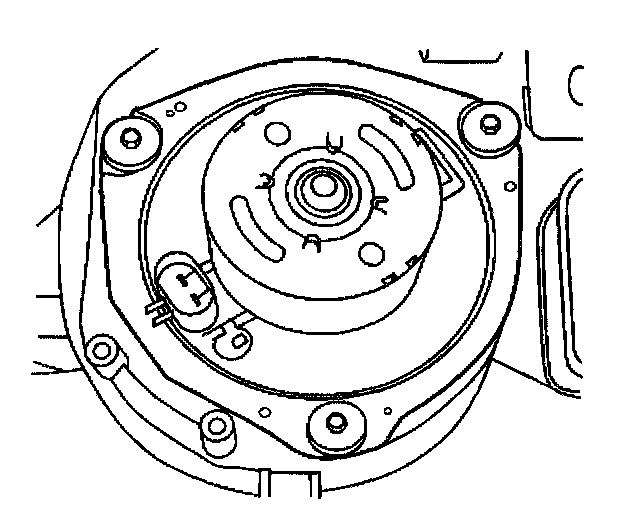

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.
2. Remove the right side instrument panel insulator.
3. Disconnect the blower motor electrical connector.
4. Remove the blower motor mounting bolts.
5. Remove the blower motor.

INSTALLATION PROCEDURE




1. Install the blower motor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the blower motor mounting bolts.

Tighten
Tighten the blower motor bolts to 20 N.m (14 lb in).

3. Connect the blower motor electrical connector.
4. Install the right side instrument panel insulator.
5. Connect the negative battery ground cable.
