Compressor Clutch Relay: Service and Repair

REMOVAL PROCEDURE




1. Remove the right diagonal brace.

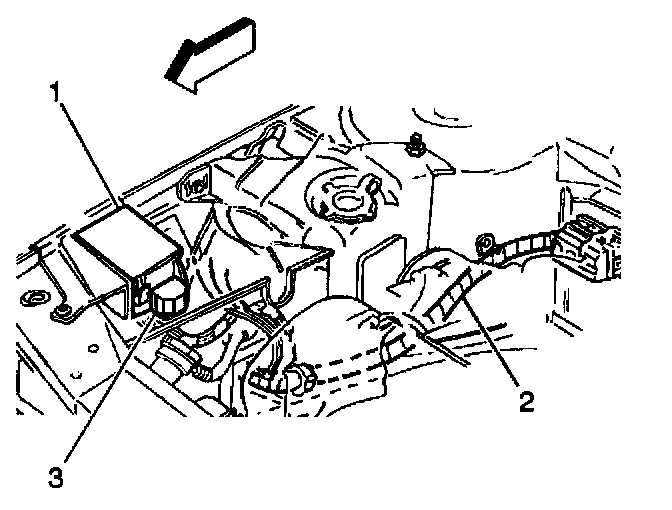

2. Remove the accessory wiring junction block cover (1).

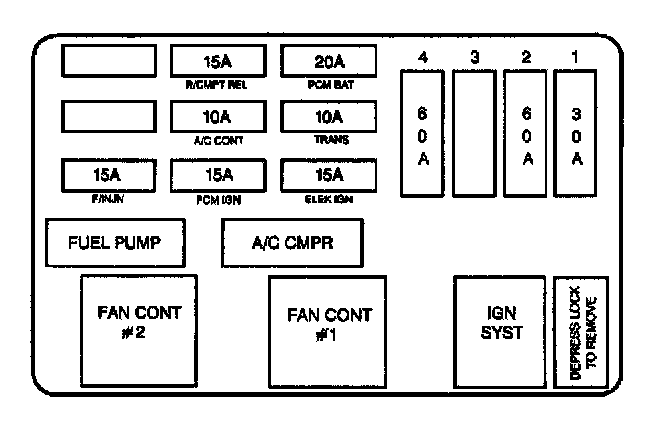

3. Remove the compressor control relay (A/C CMPR) from the electrical center.

INSTALLATION PROCEDURE




1. Install the compressor control relay (A/C CMPR) into the electrical center.




2. Install the accessory wiring junction block cover (1).
3. Install the right diagonal brace.
