Lumina V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block - IP
>>
Label
Label

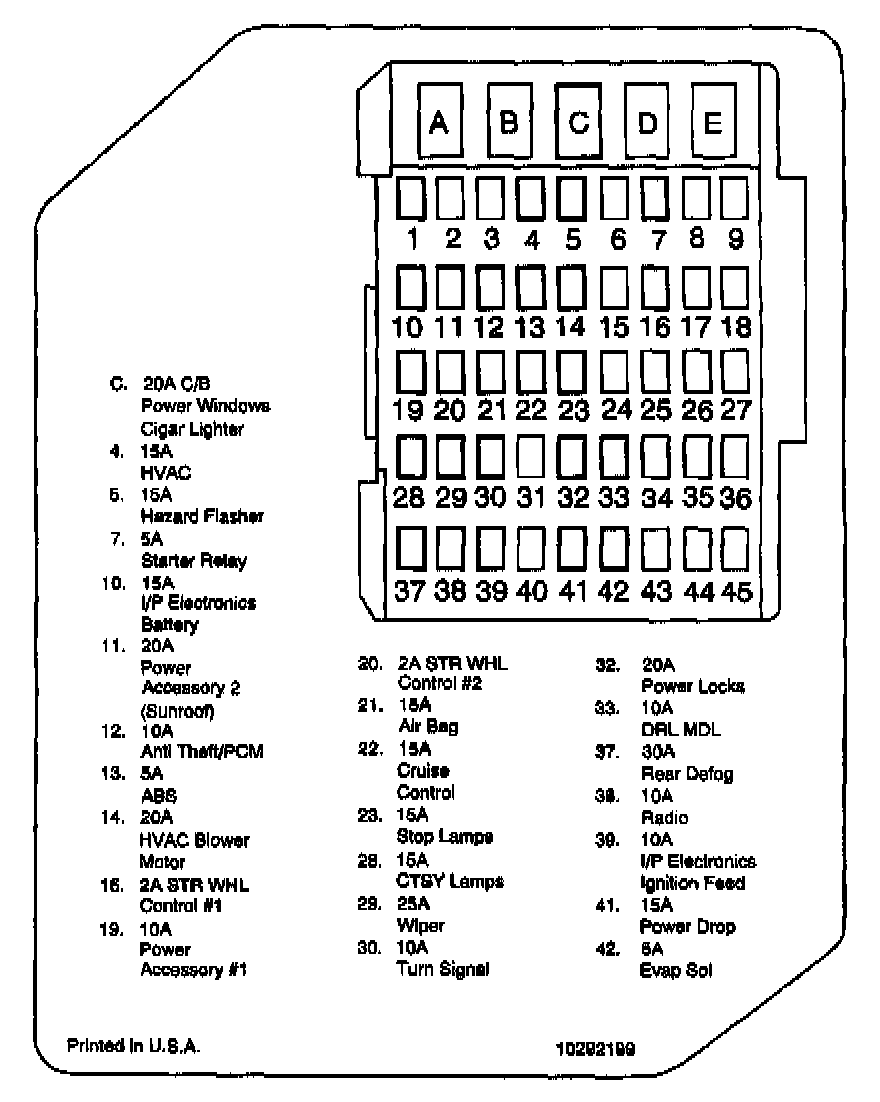

Instrument Panel Fuse Block Label:
