Door Window Regulator Motor Replacement

Door Window Regulator Motor Replacement

Removal Procedure





1. Remove the window regulator. Refer to Front Side Door Window Regulator Replacement (Service and Repair) or Rear Side Door Window Regulator Replacement (Power) (Rear Door Window Regulator - Power)Rear Side Door Window Regulator Replacement (Manual) (Rear Door Window Regulator - Manual) .

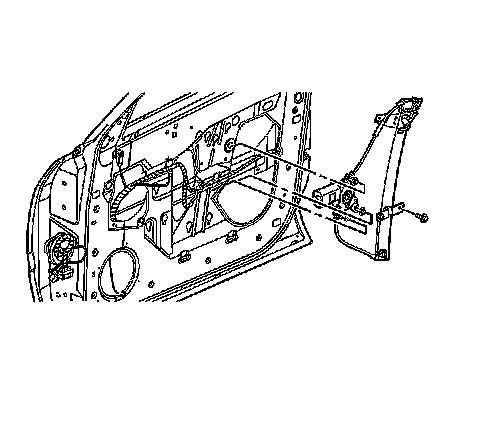

2. Remove the window regulator motor bolts.
3. Remove the window regulator motor from regulator.



Installation Procedure


Important: The window regulator motor may be installed with the regulator in any position.






1. Install the window regulator motor to the regulator.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the window regulator motor bolts.

Tighten the window regulator motor bolts to 10 N.m (89 lb in).

3. Install the window regulator. Refer to Front Side Door Window Regulator Replacement (Service and Repair) or Rear Side Door Window Regulator Replacement (Power) (Rear Door Window Regulator - Power)Rear Side Door Window Regulator Replacement (Manual) (Rear Door Window Regulator - Manual) .
