Expansion Block/Orifice Tube: Service and Repair
EXPANSION (ORIFICE) TUBE FILTER REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.
2. Remove the A/C evaporator.

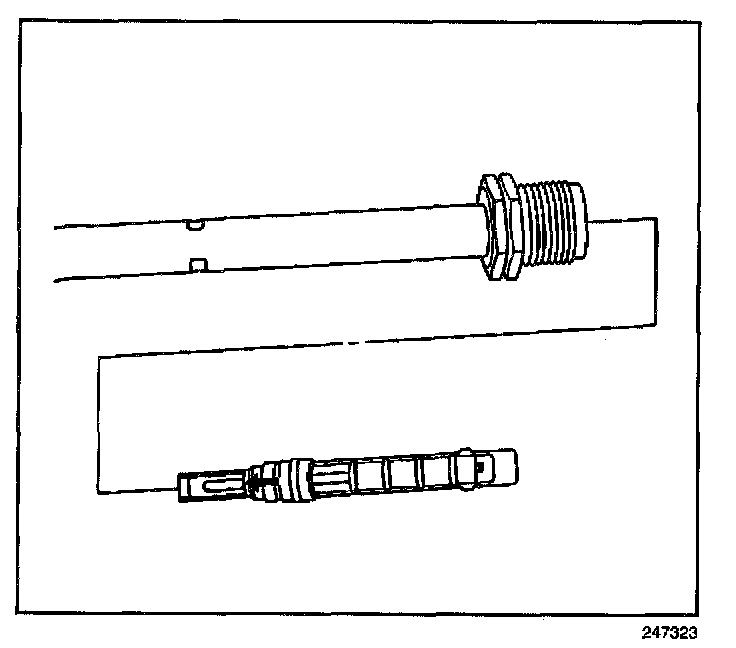

3. Remove the orifice from the A/C evaporator tube.
INSTALLATION PROCEDURE
IMPORTANT: Install the long screen inlet end toward the condenser.
1. Install the orifice in the A/C evaporator tube.
2. Install the A/C evaporator.
3. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging.
4. Leak test the fittings of the component using the J 39400-A.
