Power Seat Control Module
>>
Diagrams
>>
Driver C2 (Telescopic and Memory)
Driver C2 (Telescopic and Memory)

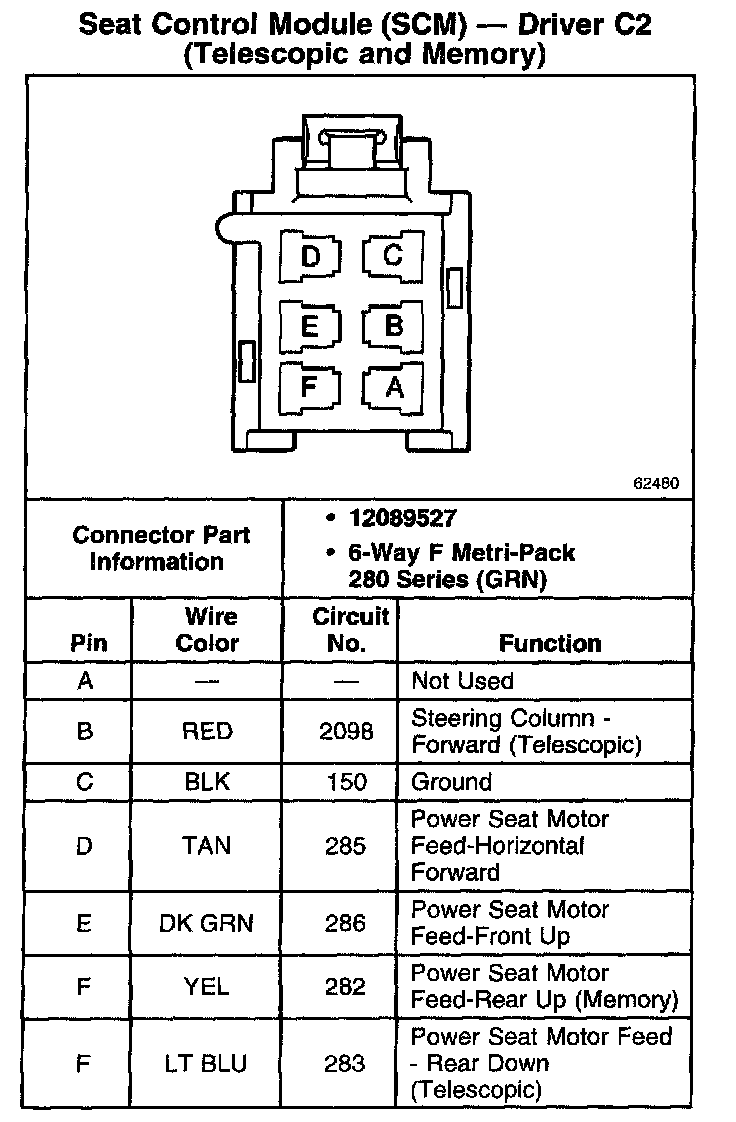

Seat Control Module (SCM) - Driver C2 (Telescopic And Memory):
