Electronic Column Lock Module - Assemble

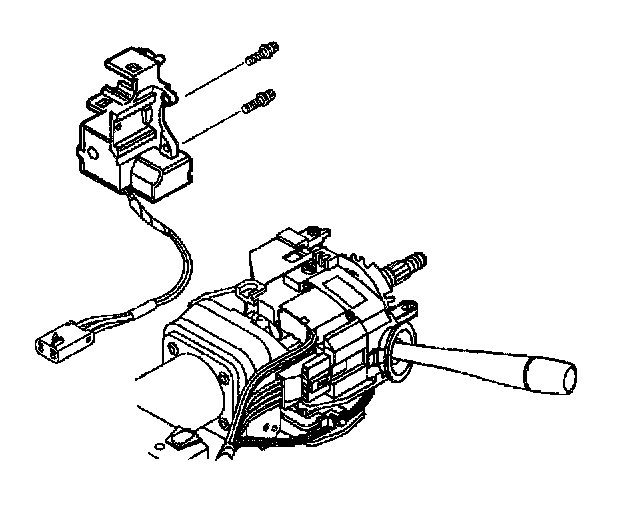

1. Install the electric column lock (2) to the steering column tilt head assembly.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the 2 pan head tapping screws (1).
- Tighten the 2 pan head tapping screws to 7 Nm (62 inch lbs.).





3. Slide the windshield wiper and washer switch assembly into the electric column lock until the clips engage.
4. Connect the electric lock module connector.





5. Route the wire harness assembly along the steering column jacket assembly.
6. Connect the connector, if necessary.





7. Install the wire harness strap (2) to the steering column tilt head assembly (1).
8. Install the wire harness strap (2) onto the wire harness assembly.





9. Pop the wire harness assembly (1) into the wire harness strap (2).
10. Install the steering column tilt head housing. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle (Telescoping) or Steering Column Tilt Head Housing - Assemble - Off Vehicle (Non-Telescoping).
