Electronic Column Lock Module - Disassemble

1. Remove the upper tilt head components. Refer to Steering Column Tilt Head Housing - Disassemble - Off Vehicle (Telescoping) or Steering Column Tilt Head Housing - Disassemble - Off Vehicle (Non-Telescoping).

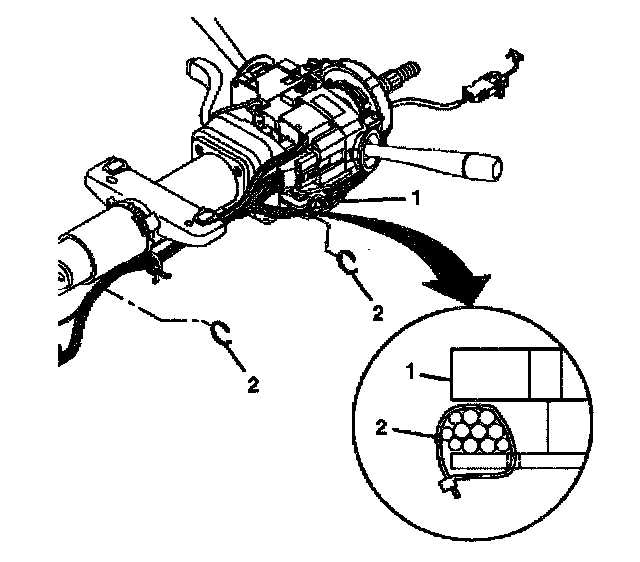

2. Pop the wire harness assembly (1) from the wire harness strap (2).
3. Disconnect the connector, if necessary

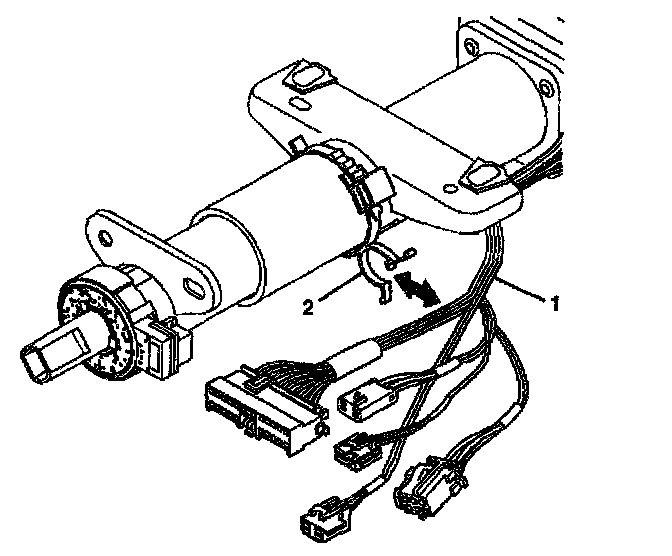

4. Remove the wire harness straps (2) from the steering column tilt head assembly.

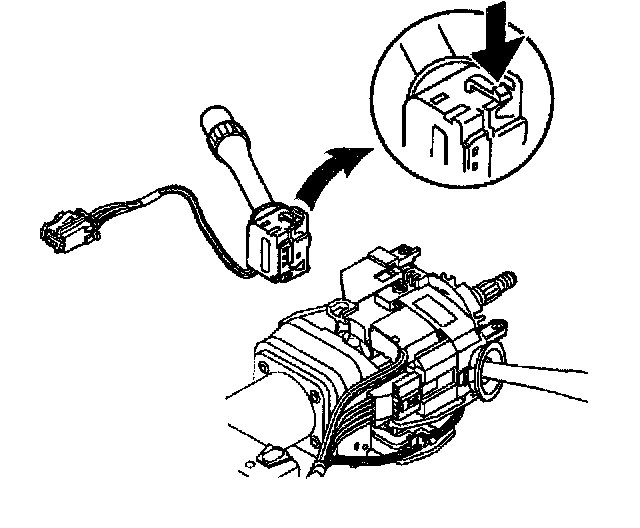

5. Depress the top and bottom clips on the windshield wiper and washer switch assembly.
6. Slide the windshield wiper and washer switch assembly away from the electric column lock to disengage.

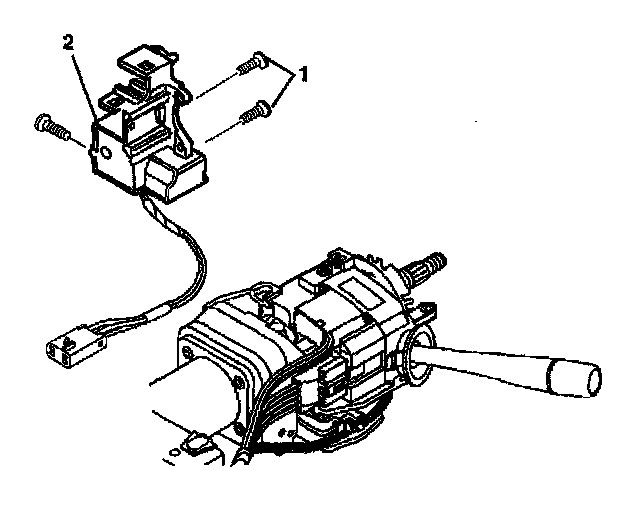

7. Remove the 3 pan head tapping screws (1).
8. Remove the electric column lock (2) from the steering column tilt head assembly.
