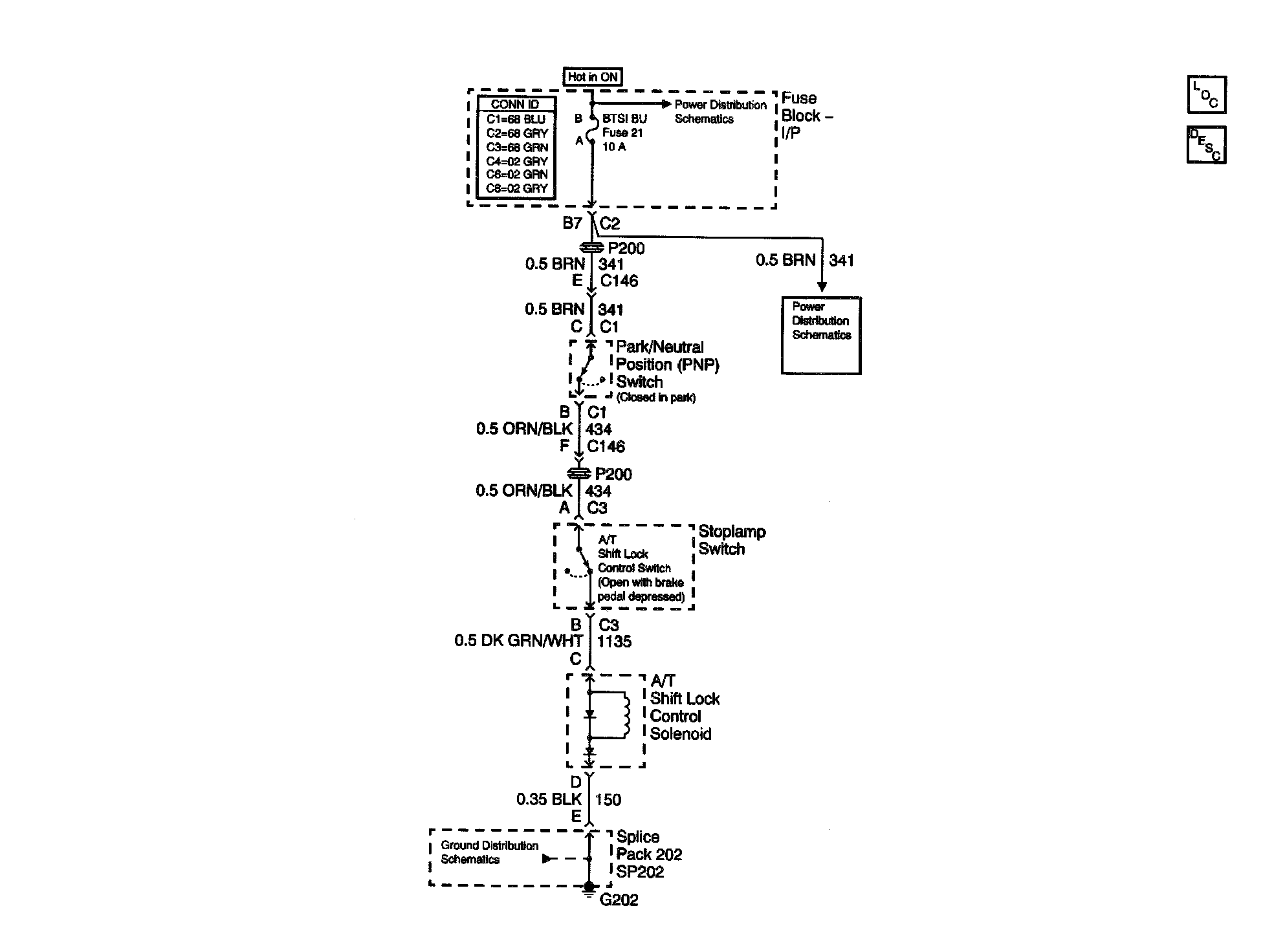

Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Diagrams >> Electrical Diagrams >> Brake Transmission Shift Interlock
