Ambient Temperature Sensor / Switch HVAC
>>
Ambient Air Temperature Sensor
Ambient Air Temperature Sensor

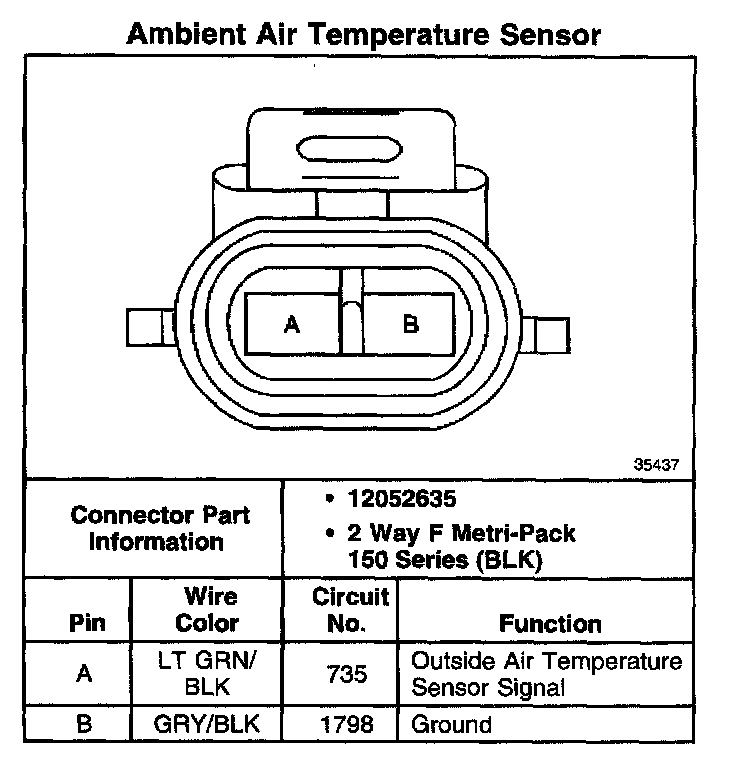

Ambient Air Temperature Sensor:
