Connector Views
>>
Fuse Block
>>
Fuse Block-Underhood - C2
Fuse Block-Underhood - C2

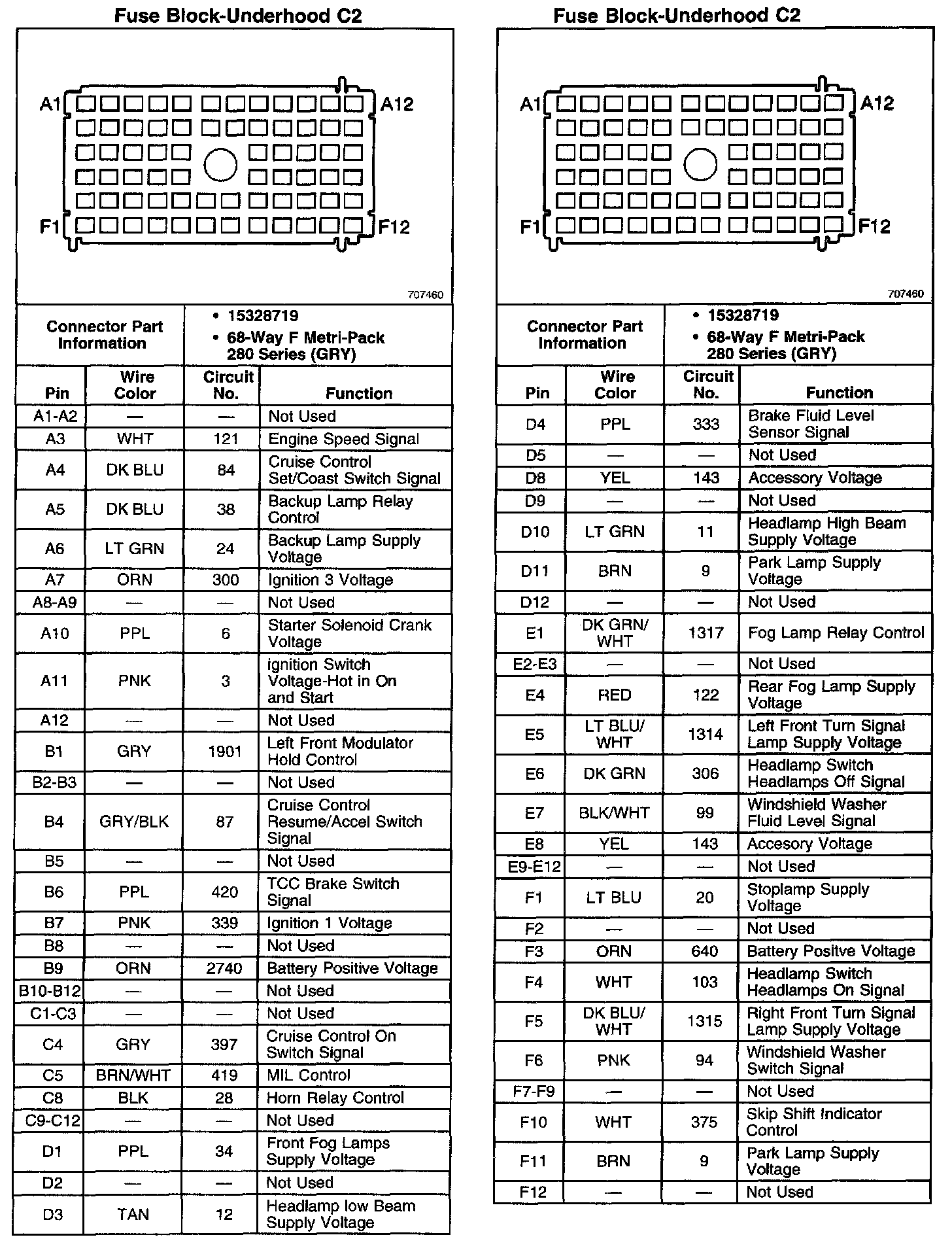

Fuse Block-underhood C2:
