Fuse Block-Underhood - C3
Fuse Block-Underhood - C3

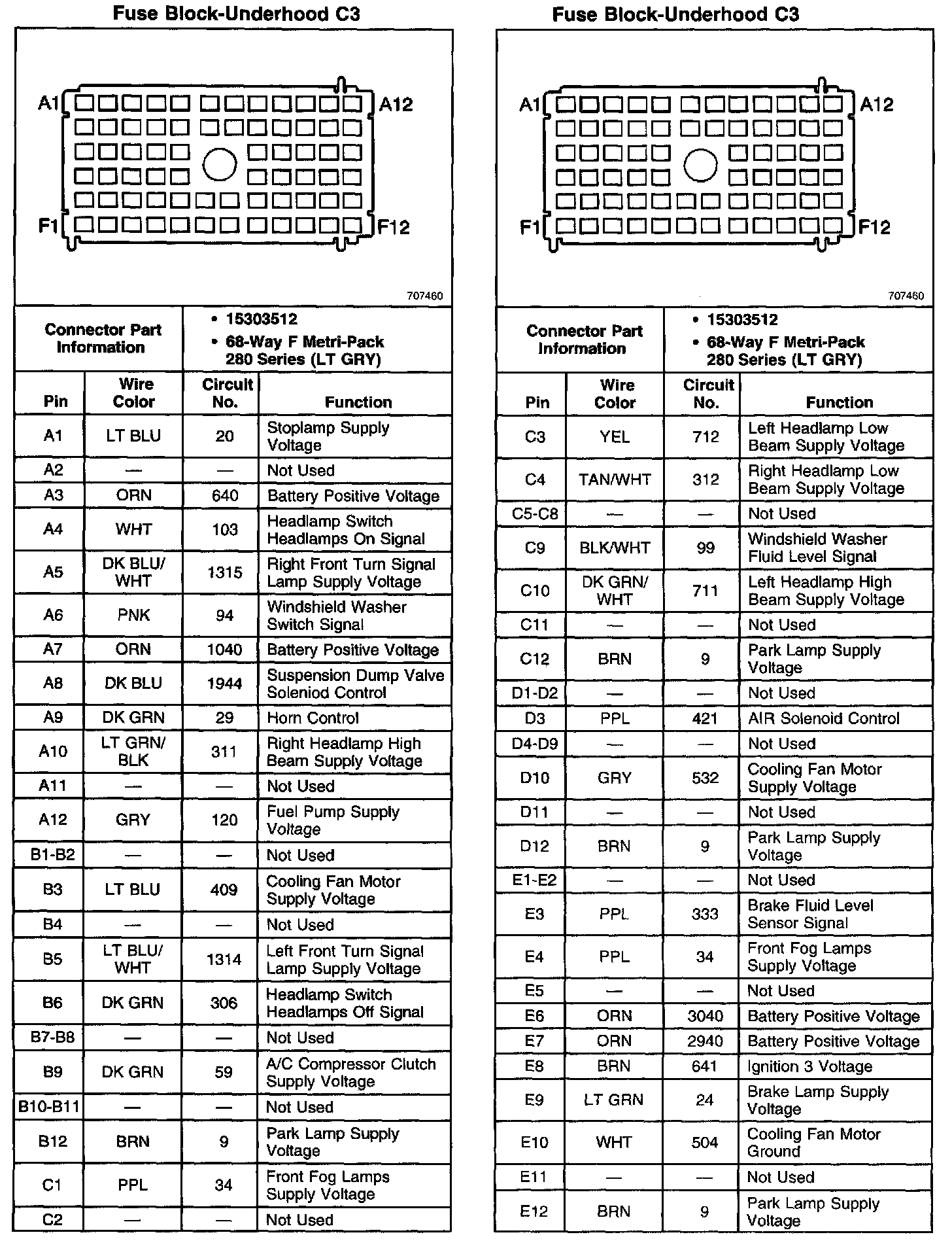

Fuse Block-underhood C3 (Part 1 Of 2):

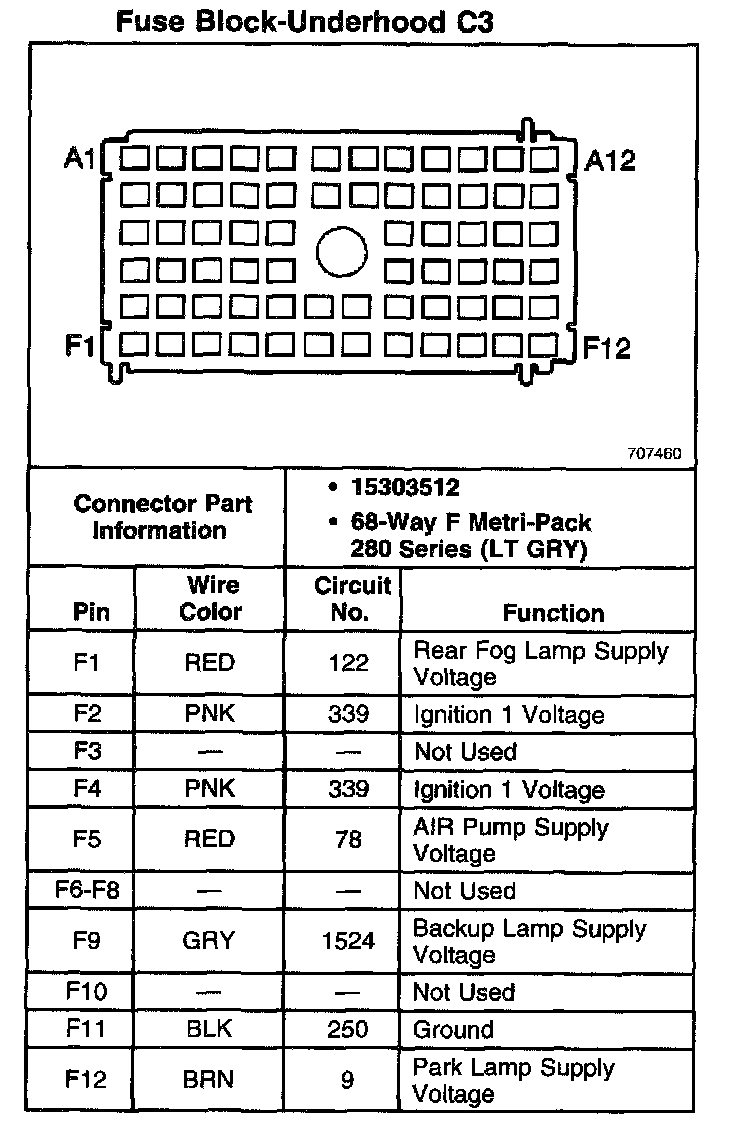

Fuse Block-underhood C3 (Part 2 Of 2):
