Tail Lamp
Tail Lamp

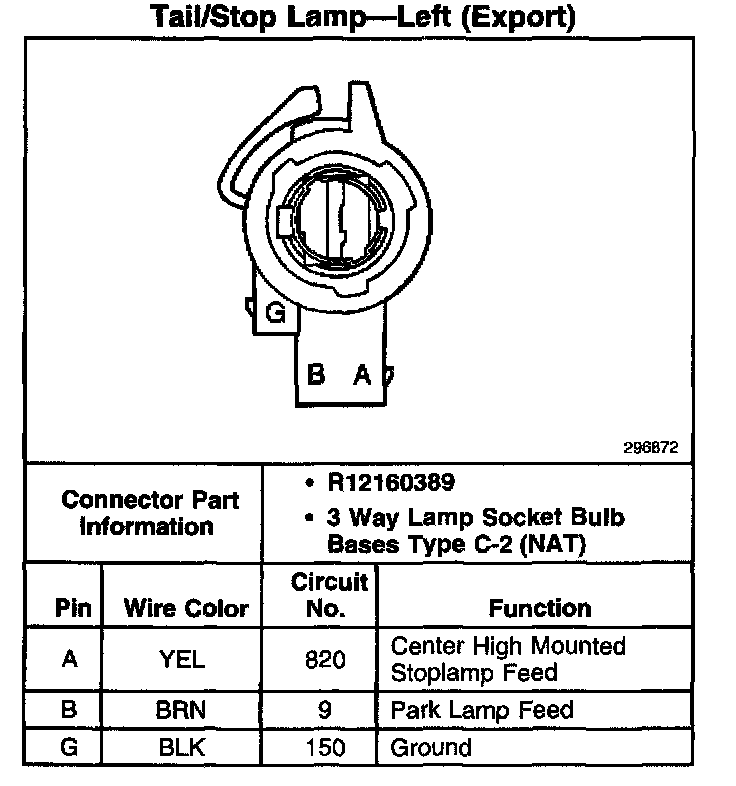

Tail/Stop Lamp-Left (Export):
Tail/Stop and Turn Signal Lamp-Left (Domestic):
Tail/Stop Lamp-Right (Export):

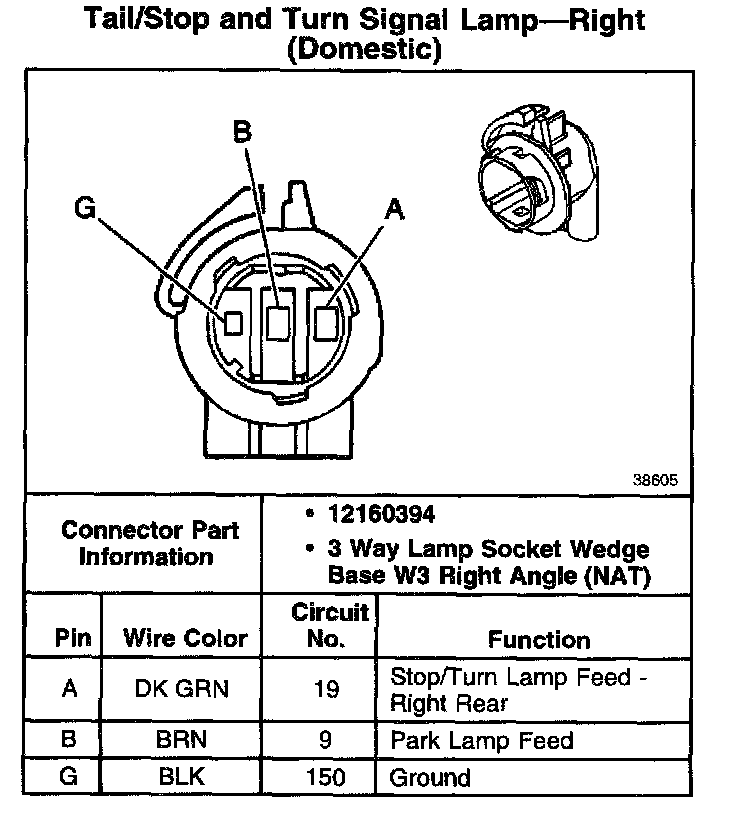

Tail/Stop and Turn Signal Lamp-Right (Domestic):
