Home
>>
Chevrolet
>>
2001
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Engine
Engine

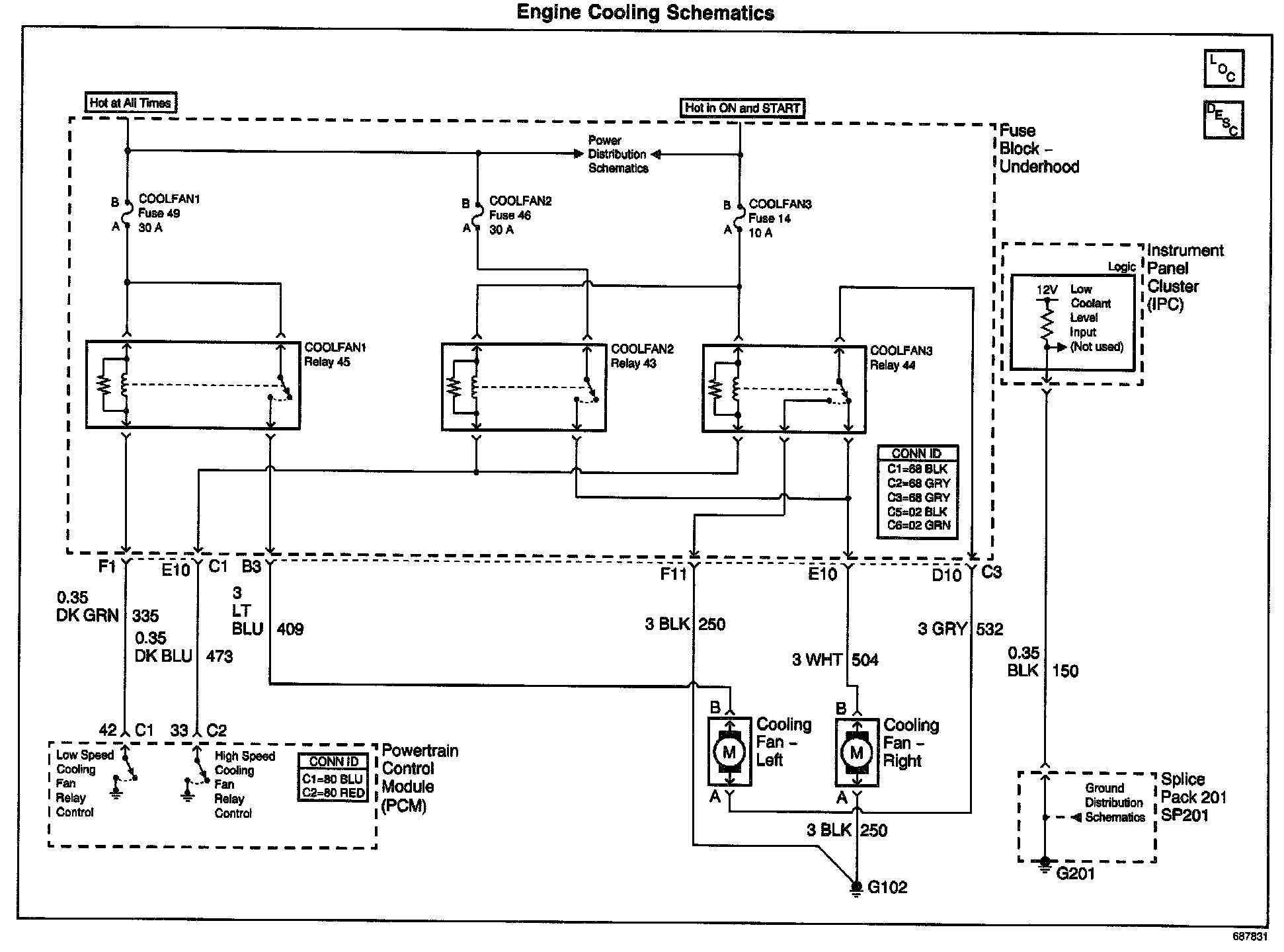

Engine Cooling Schematics:
