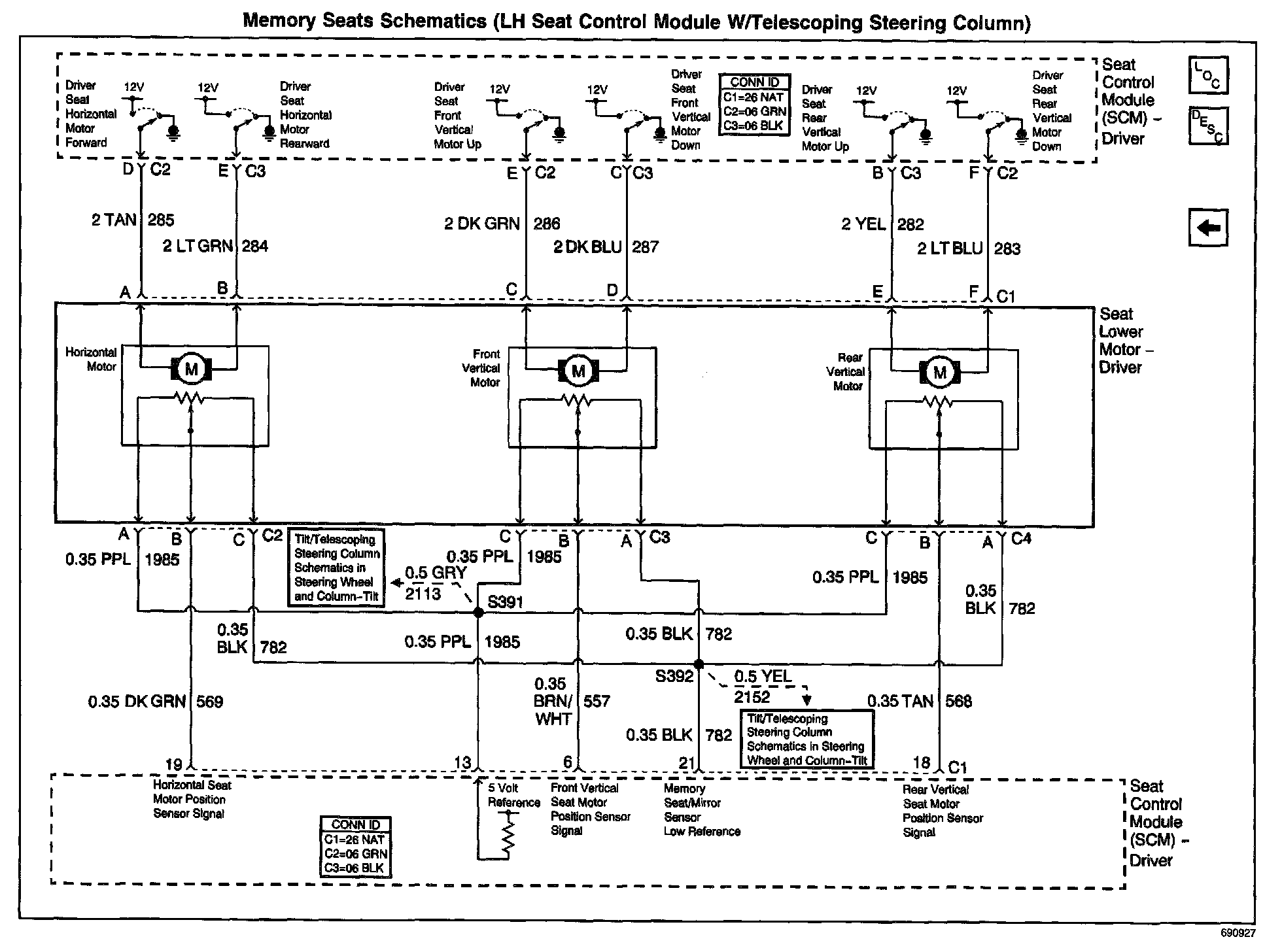

LH Seat Control Module W/Telescoping Steering Column

Memory Seats Schematics: LH Seat Control Module W/Telescoping Steering Column:
