Traction Control Switch: Service and Repair

Traction Control Switch Replacement (Impala)

Removal Procedure
1. Apply the parking brake, if equipped with column shift.





2. Position the transaxle shift control indicator to 1, if equipped with column shift.
3. Adjust the steering wheel for access.

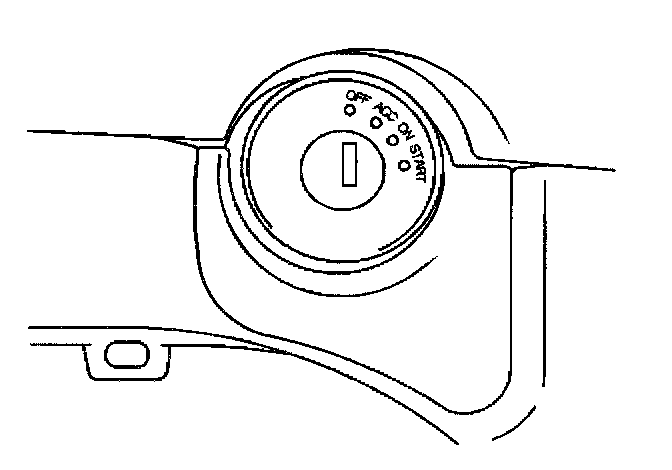

4. Remove the ignition switch cylinder bezel.

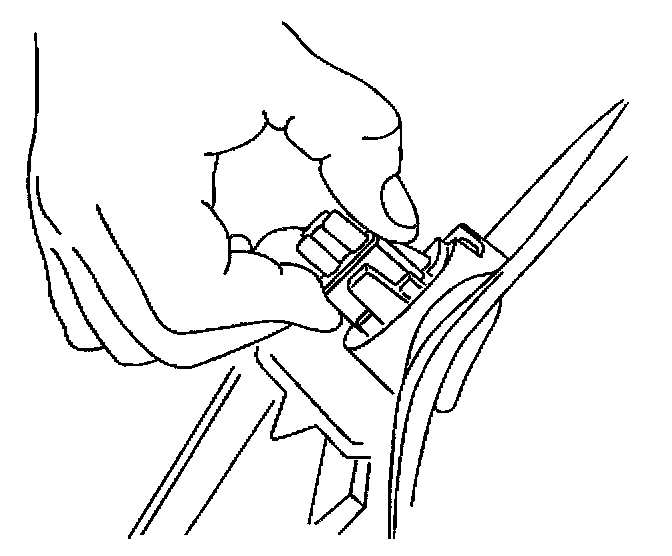

5. Remove the LH Instrument Panel (IP) fuse block access opening cover.
6. Remove the LH IP cluster trim plate screws.

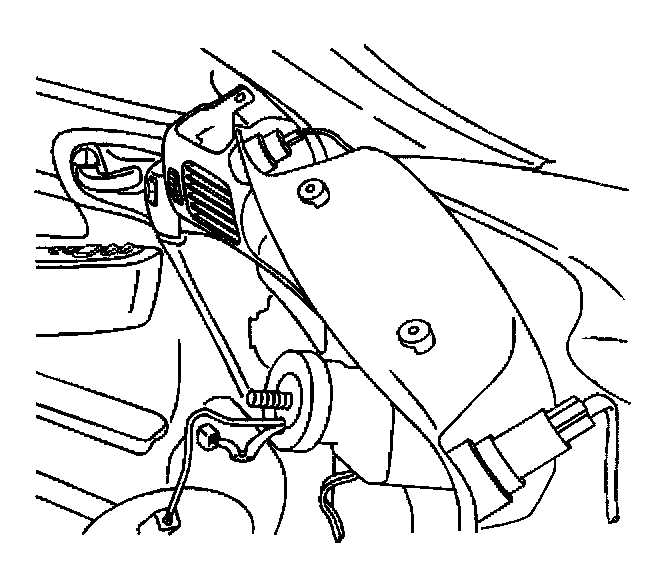

7. Start at the left side of the IP cluster trim plate. Grasp the trim plate and carefully pull rearward. Disengage enough IP cluster trim plate retainers in order to easily access the traction control switch.





8. Disconnect the electrical connectors from the traction control switch.
9. Remove the traction control switch from the IP cluster trim plate.

Installation Procedure





1. Install the traction control switch to the IP cluster trim plate.
2. Connect the electrical connector to the traction control switch.

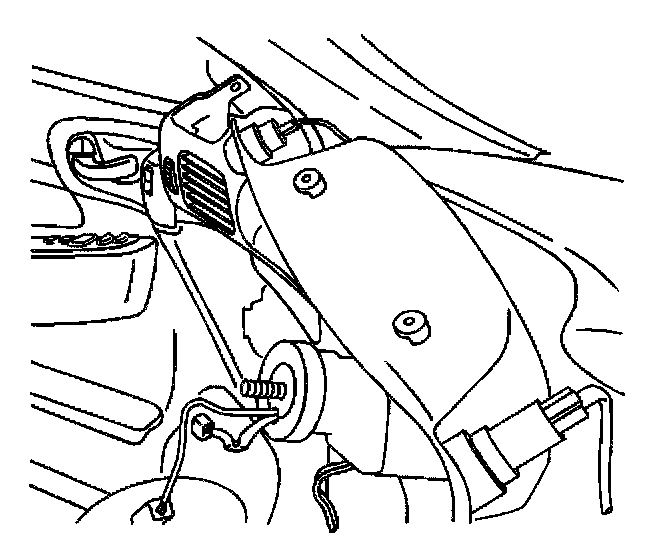

3. Carefully press the IP cluster trim plate into the IP trim pad. Make sure all of the retainers are fully engaged.

Notice: Refer to Fastener Notice in Service Precautions.





4. Install the LH IP cluster trim plate screws.
Tighten the IP cluster trim plate screws to 2 Nm (18 inch lbs.).
5. Install the LH Instrument Panel (IP) fuse block access opening covers.

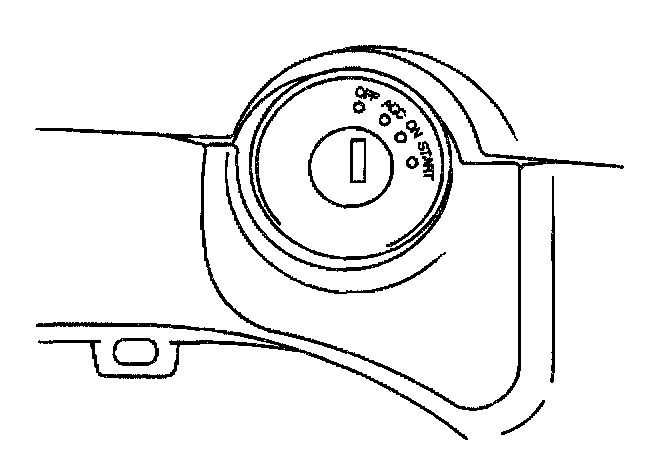

6. Install the ignition switch cylinder bezel.
7. Return the steering wheel to the original position.
8. Position the transaxle shift control indicator to Park, if equipped with a column shift.
9. Push to release the parking brake, if equipped with column shift.
