Home >> Chevrolet >> 2001 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Door Lock-Driver, C2

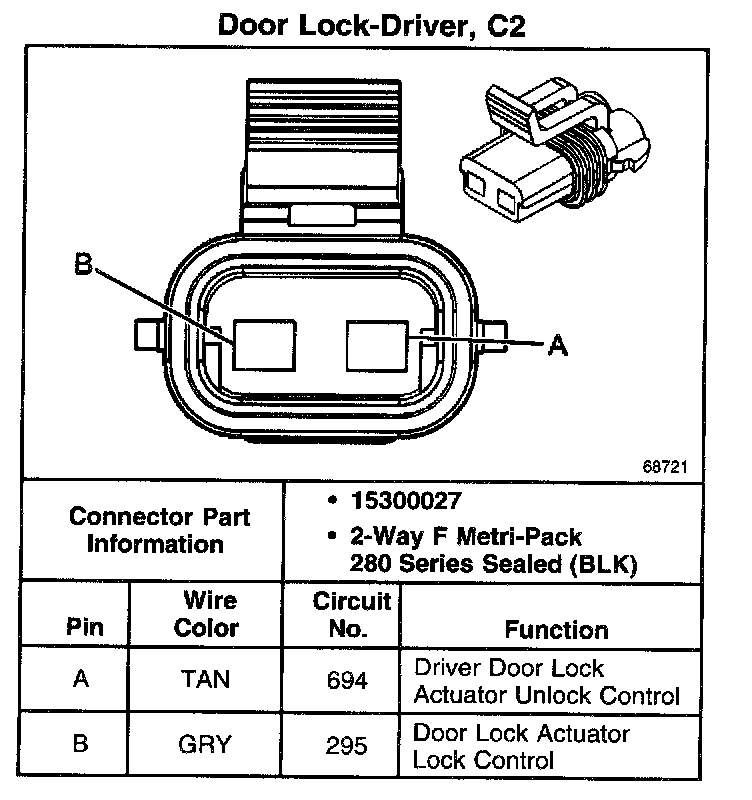

Door Lock-Driver, C2

Door Lock-Driver, C2:
