Power Seat Relay
Power Seat Relay

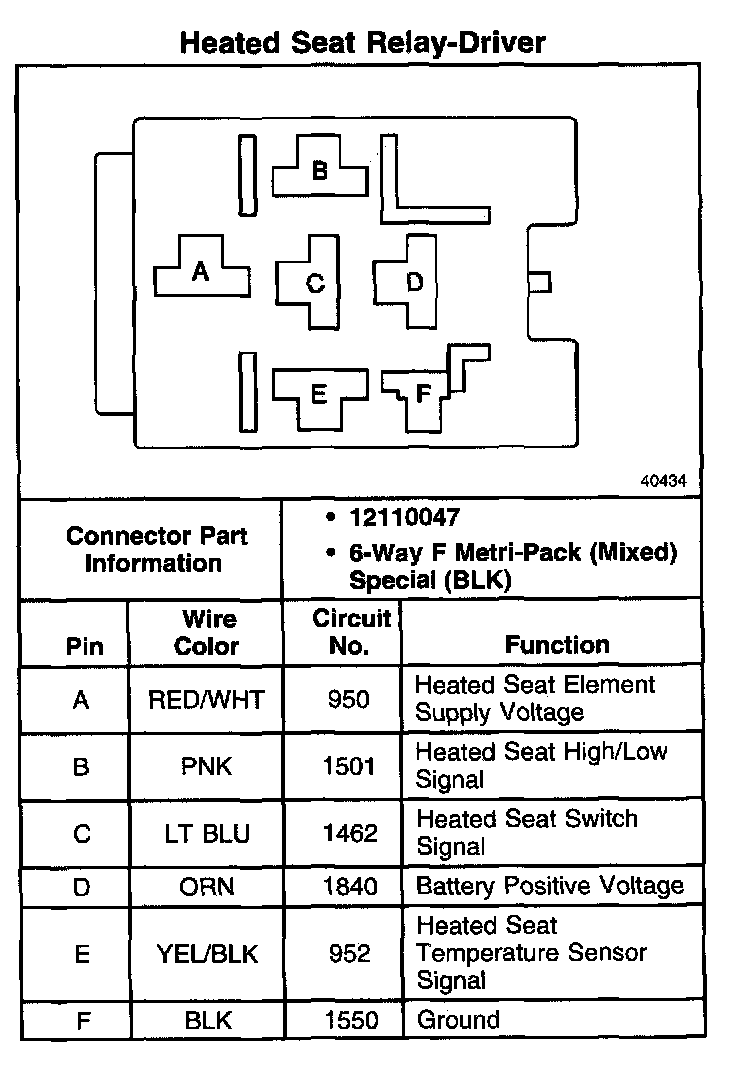

Heated Seat Relay-Driver:

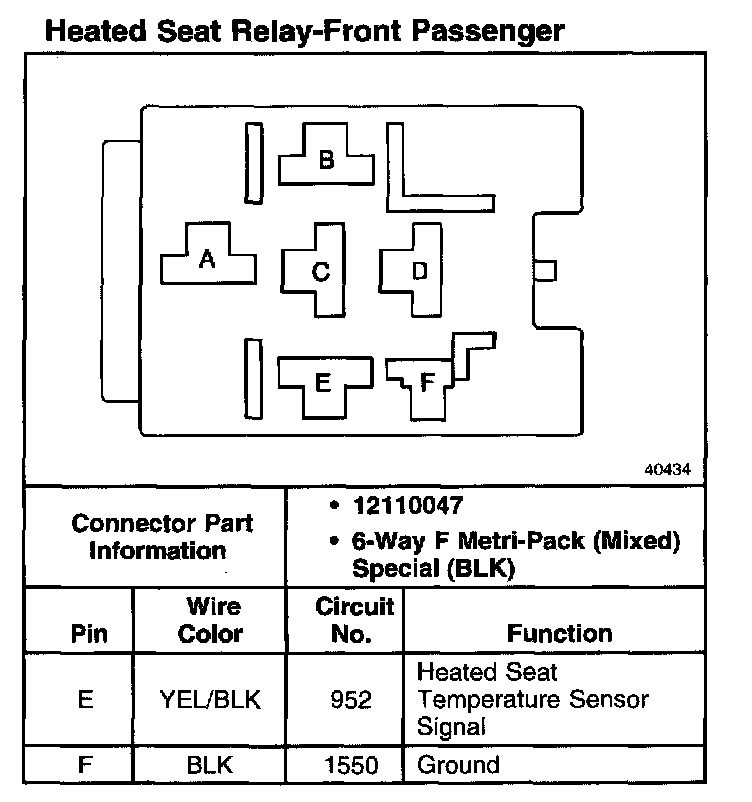

Heated Seat Relay-Front Passenger (Part 2 Of 2):

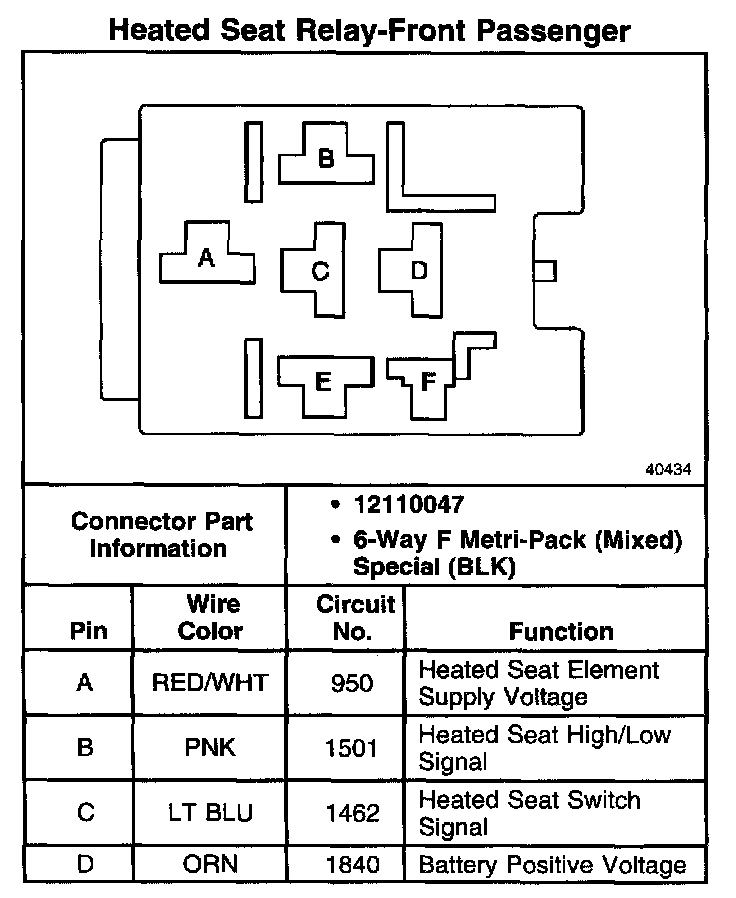

Heated Seat Relay-Front Passenger (Part 1 Of 2):
