Top View: Outside Devices
Top View: Outside Devices

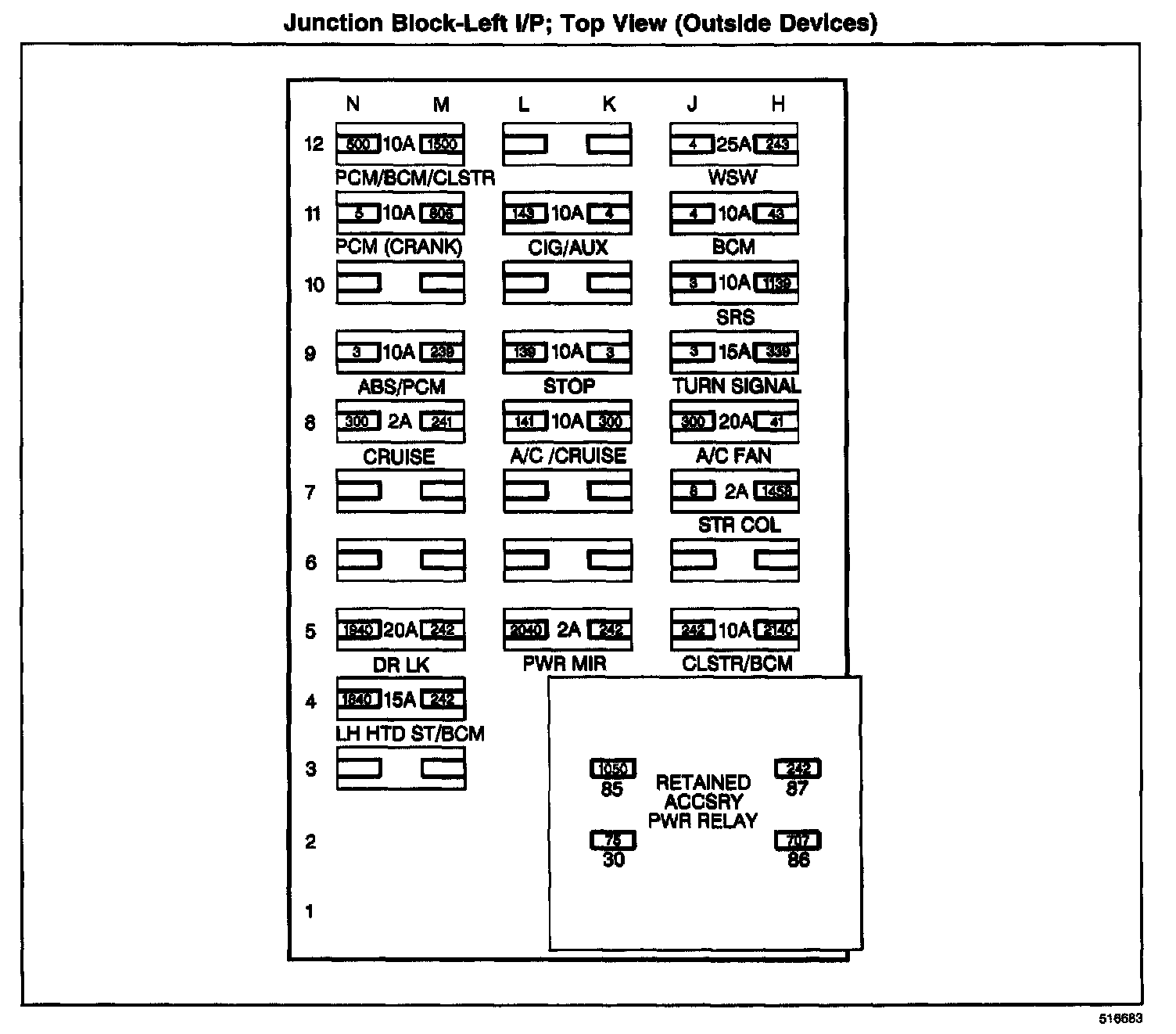

Junction Block-Left I/P; Top View (Outside Devices):
