Junction Block-Underhood (Bottom)
>>
Application Table
Application Table

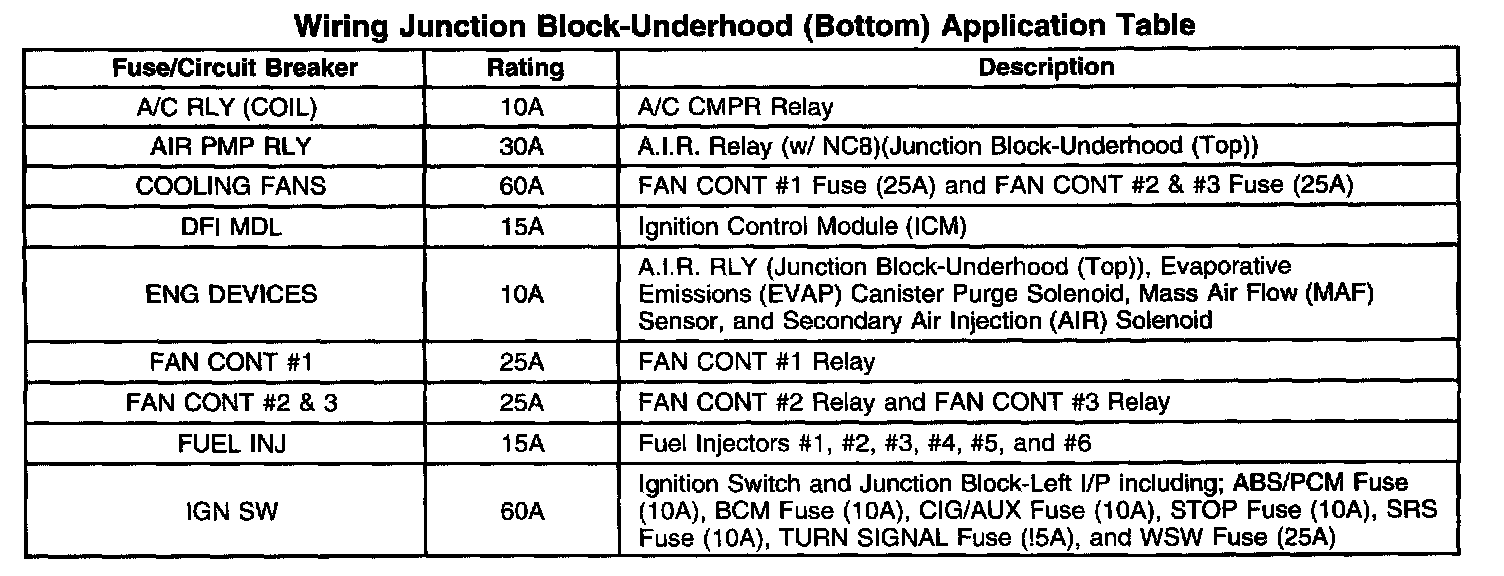

Wiring Junction Block-Underhood (Bottom) Application Table (Part 1 Of 2):

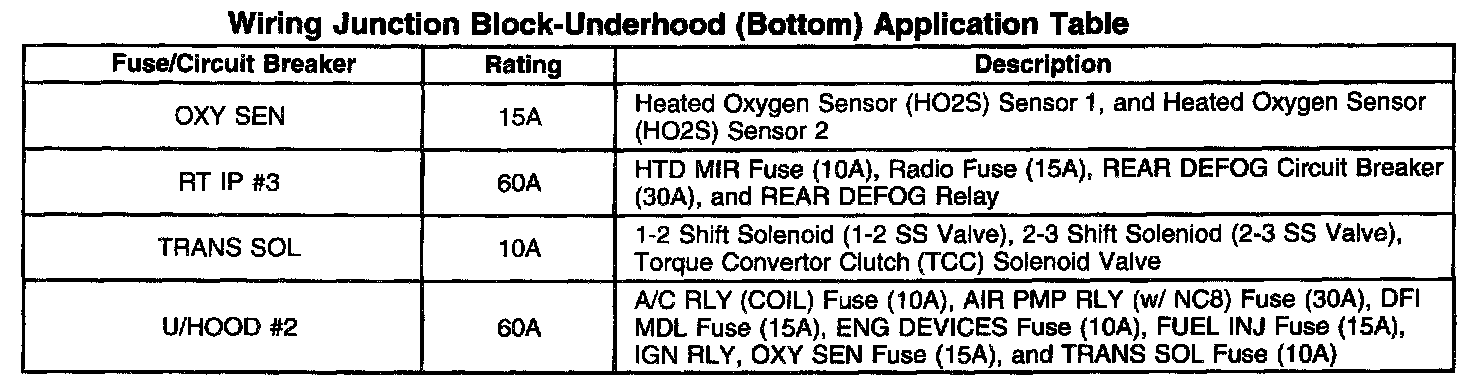

Wiring Junction Block-Underhood (Bottom) Application Table (Part 2 Of 2):
