Window Motor-Front Passenger

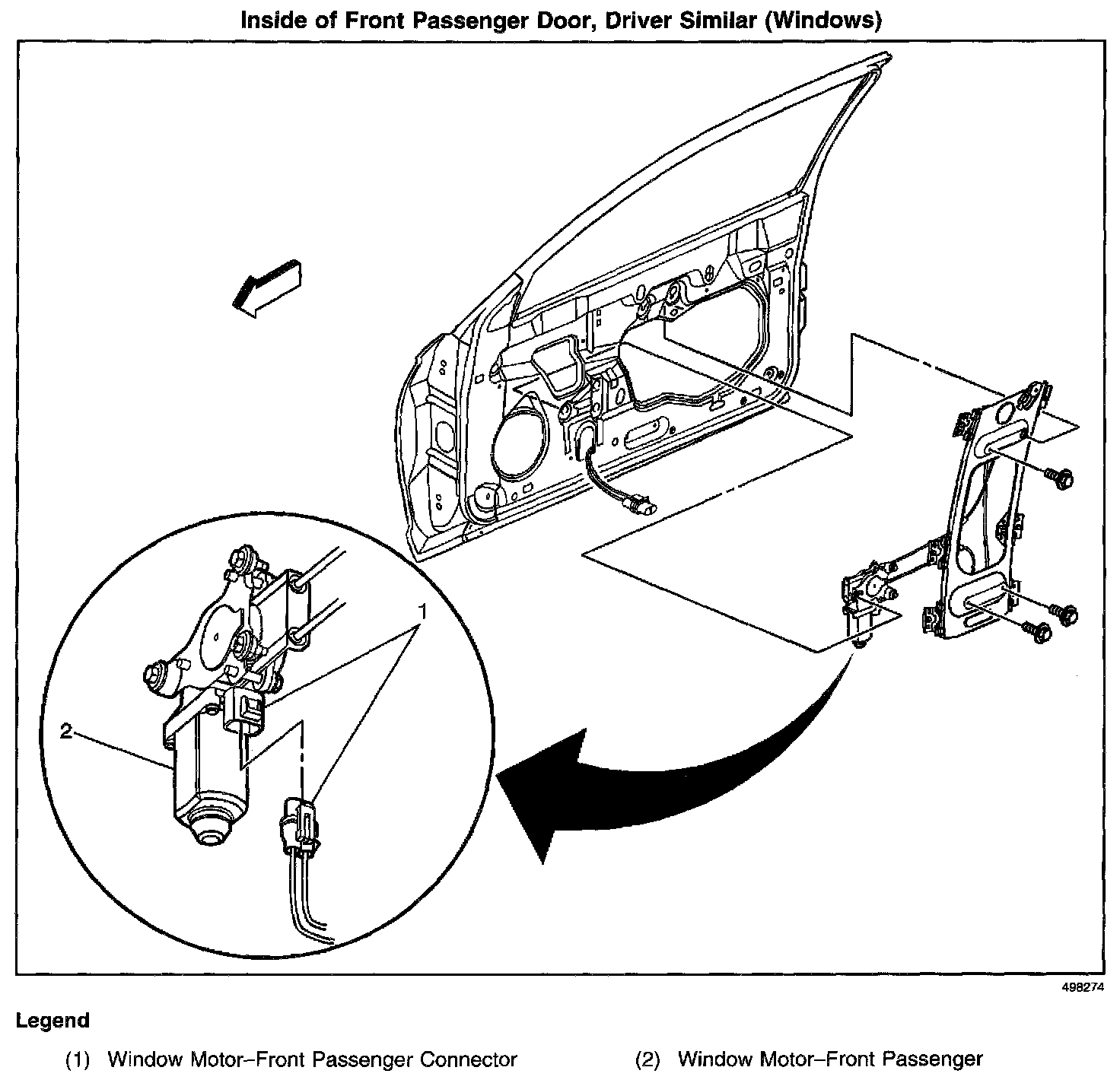

Locations View:




In the center of the front passenger door, part of the window regulator
