Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Map Light
Map Light

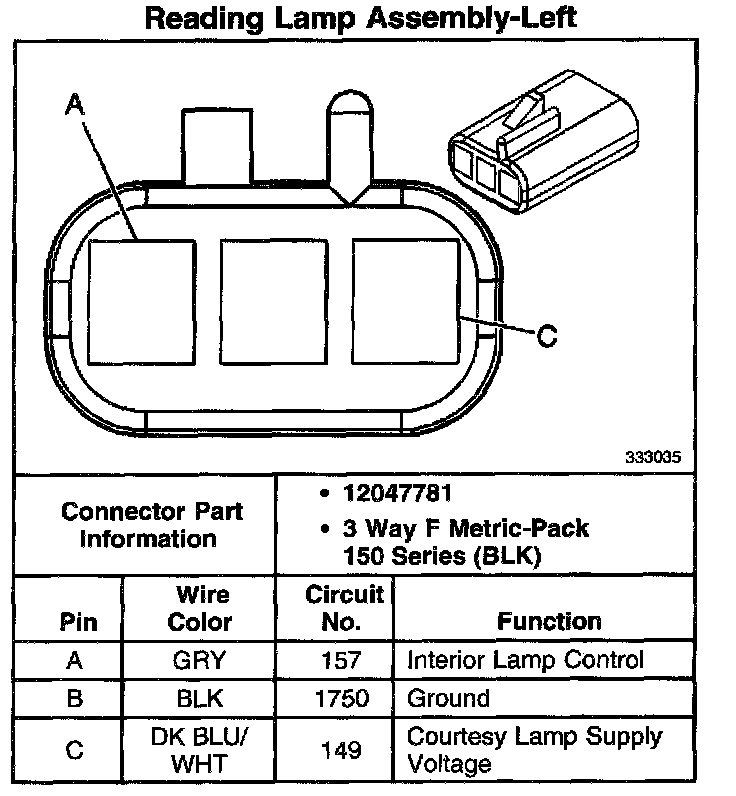

Reading Lamp Assembly-Left:
Reading Lamp Assembly-Right:
