Home >> Chevrolet >> 2001 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch >> Door Lock-Front Passenger, C1

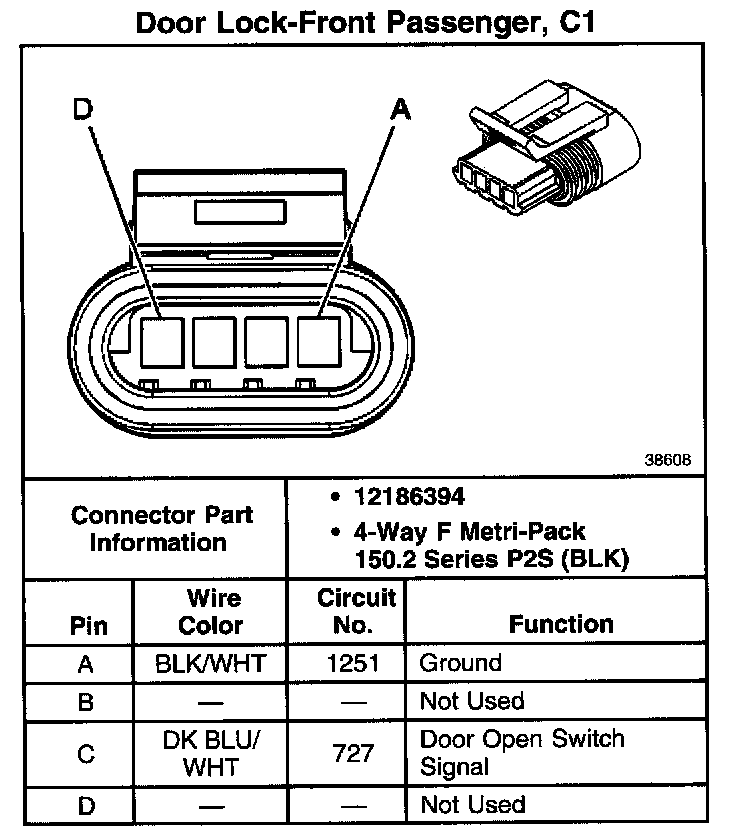

Door Lock-Front Passenger, C1

Door Lock-Front Passenger, C1:
